Torque Tube Assembly, 8 Spd

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - torque Tube Assembly, 8 spd

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

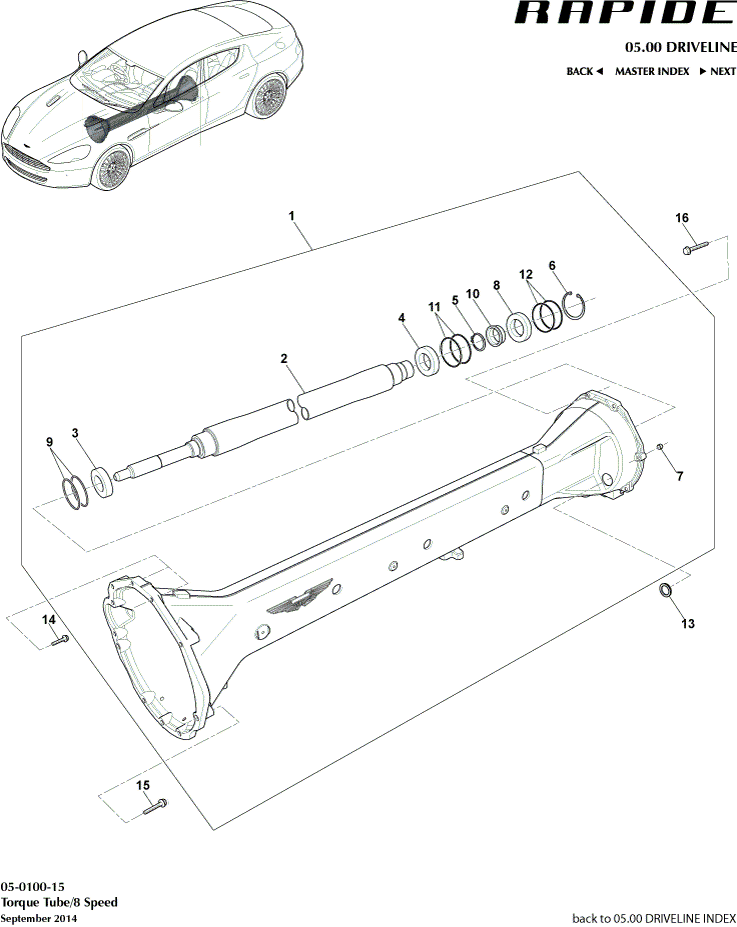

torque Tube Assembly, 8 spd of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FD434500BA
TRQE TBE & PROPSHFT
From 15MY, 8 speed 		- 1 Enquire
2 AD434602BA
PROPSHAFT
From 15MY 		- 1 Enquire
3 SY9Y255A58AB
RR QUATR CLSG PNL RH
Supplied with item 2 		- 1 Enquire
4 80165B87EE8
Veneer Samples, Parquetry
Supplied with item 2 		- 1 Enquire
5 SY9Y3063472AA
MIRROR GLASS CNVX RH
Supplied with item 2 		- 1 Enquire
6 704572
CIRCLIP 4G43-4500-AA_PIA3
- 		- 1 Enquire
7 SY9Y3K185AD
KNL ASY - FRT WHL LH
To Transmission 		- 2 Enquire
8 SY9Y31113AAW
RR QTR UPR ASY LH
Supplied with item 2 		- 1 Enquire
9 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Supplied with item 2 		- 2 Enquire
10 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
From 14.5MY 		- 1 Enquire
11 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Supplied with item 2 		- 2 Enquire
12 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Supplied with item 2 		- 2 Enquire
14 703195
SCREW M8x40 FLG 8 CHROME FREE
- 		- 2 Enquire
15 703191
BOLT-M10x1.5x65 FLG CHROME FREE
- 		- 7 Enquire
16 703192
SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE
- 		- 8 Enquire
