Wheel & Tyres, Rear from 13MY of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Wheel & Tyres, Rear from 13MY

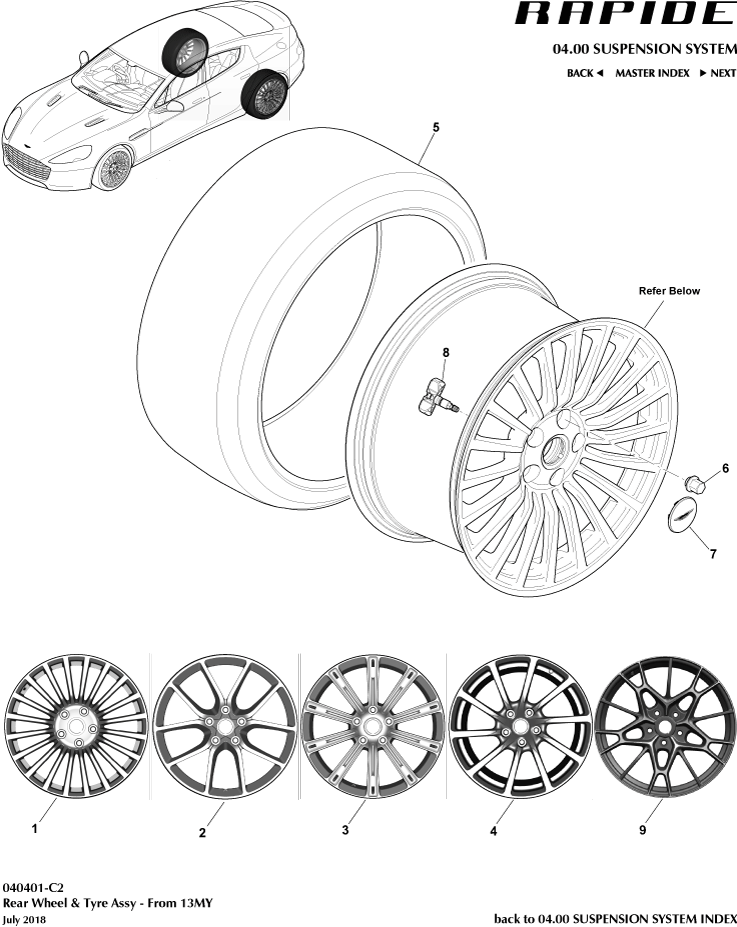

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD431007TA	20SP RR WHL SIL	AD431007TA 20SP RR WHL SIL From 16MY, Silver, Not DT, Rapide	-	2	Enquire
-	CD439965GAA	WHEEL RR BLK-20 SPK	CD439965GAA WHEEL RR BLK-20 SPK Black, Diamond Turned	-	2	Enquire
-	DD439965GFA	WHL-RR BLACK DT 20in	DD439965GFA WHL-RR BLACK DT 20in Black, Diamond Turned	-	2	Enquire
-	FD439965GHA	RR WHL ST CHAM	FD439965GHA RR WHL ST CHAM From 15MY, Champagne, Diamond Turned	-	1	Enquire
-	FD439965GEA	WHL RR-GRAPH DT20 in	FD439965GEA WHL RR-GRAPH DT20 in From 15MY, Graphite, Diamond Turned	-	1	Enquire
-	FD439965GFA	WHL RR GRAPH DT20INC	FD439965GFA WHL RR GRAPH DT20INC From 15MY, Graphite, Diamond Turned	-	1	Enquire
-	KD431508BA	TYRE REAR 295-30R21	KD431508BA TYRE REAR 295-30R21 AMR, From 19MY. Standard	-	2	Enquire
-	AD431508DA	WINTER TYRE-REAR 295/35/R20	AD431508DA WINTER TYRE-REAR 295/35/R20 -	-	2	Enquire
-	KD431K024AA	NUT-WHL BLT BLK	KD431K024AA NUT-WHL BLT BLK AMR, Black	-	10	Enquire
-	7G331A096BBPK	BDG-WHL CTR-ANTH (4)	7G331A096BBPK BDG-WHL CTR-ANTH (4) Graphite Cap/Green Wings, Pack of 4	-	2	Enquire
-	CD331A096BBPK	BADGE-WHL CENTRE(4)	CD331A096BBPK BADGE-WHL CENTRE(4) Black Cap/Green Wings, Up to 17MY. Pack of 4	-	2	Enquire
-	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4) Anthracite Cap/Green Wings, From 18MY. Pack of 4	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315Mhz	-	2	Enquire
-	SY9Y2C027CA	RR WHL DISC BRK-LH	SY9Y2C027CA RR WHL DISC BRK-LH Silver	-	A/R	Enquire
-	12525B3A0D7	Dummy connector	12525B3A0D7 Dummy connector Grey	-	A/R	Enquire
-	ED231040AA	BLK WHL BAL 5G	ED231040AA BLK WHL BAL 5G Black	-	A/R	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted -	-	1	Enquire
-	KD431007TA	WHEEL-RR 21 BLK	KD431007TA WHEEL-RR 21 BLK From 19MY, AMR, Plain Black	-	2	Enquire
1	AD431007NA	WHEEL REAR-20 inch SILVER DT 433MHZ 20 SPOKE	AD431007NA WHEEL REAR-20 inch SILVER DT 433MHZ 20 SPOKE Silver, Diamond Turned, Rapide S	-	2	Enquire
2	DD439965GDA	WHL-DT SILV RR -20in	DD439965GDA WHL-DT SILV RR -20in Silver, Diamond Turned	-	2	Enquire
3	BD439965GAA	WHEEL RR POL-10 SPK	BD439965GAA WHEEL RR POL-10 SPK Up to 15MY, Silver, Polished	-	2	Enquire
4	FD439965GGA	RR WHL ST CHAM	FD439965GGA RR WHL ST CHAM From 15MY, Champagne, Diamond Turned	-	1	Enquire
5	FD431508BA	TYRE REAR 295-35R20	FD431508BA TYRE REAR 295-35R20 Standard. R117 Specification	-	2	Enquire
6	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 - ARRIVING SOON	-	10	Enquire
7	6G331A096ABPK	BADGE-WHL CENTRE(4)	6G331A096ABPK BADGE-WHL CENTRE(4) Silver Cap/Green Wings, Up to 17MY. Pack of 4	-	2	Enquire
8	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433Mhz	-	2	Enquire
9	KD431007CA	WHEEL-REAR 21 DT	KD431007CA WHEEL-REAR 21 DT From 19MY, AMR, Black, Diamond Turned	-	2	Enquire
