Rear Suspension Assembly of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

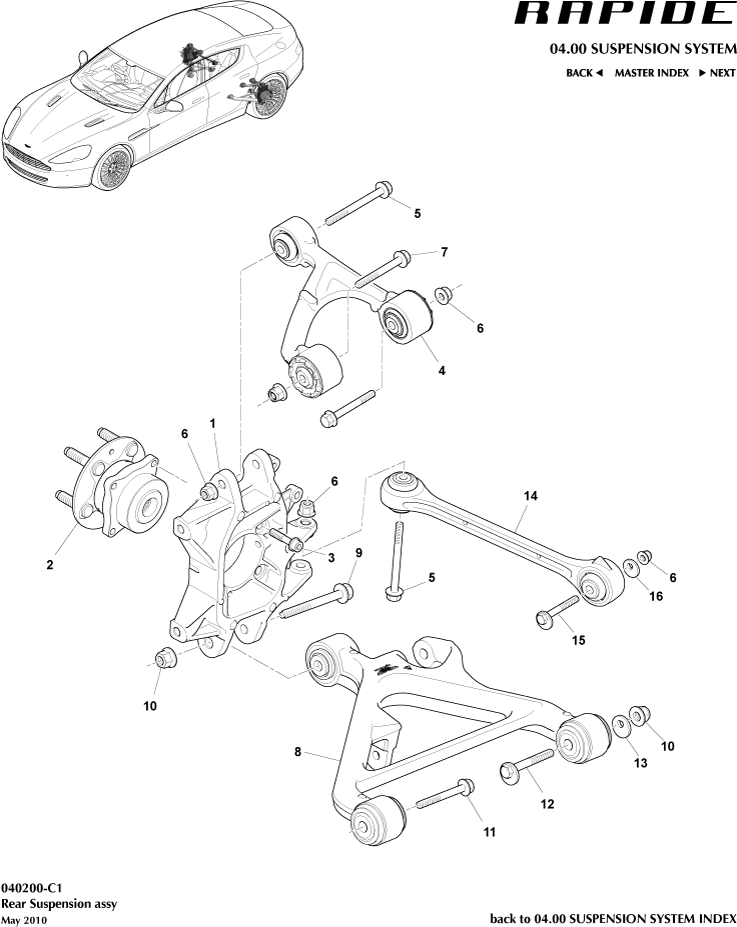

Aston Martin GT RAPIDE (2010-2019) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD435A971AB	KNUCKLE REAR WHL LH	AD435A971AB KNUCKLE REAR WHL LH -	-	1	Enquire
-	AD435K743AA	ARM & BUSHING ASSY REAR SUSPENSION UPPER LH	AD435K743AA ARM & BUSHING ASSY REAR SUSPENSION UPPER LH -	-	1	Enquire
-	DD435K743AB	ARM & BSHG ASY RR SU	DD435K743AB ARM & BSHG ASY RR SU Rapide S, Up To 15MY	-	2	Enquire
-	FD435K743AA	ARM & BSHG ASY RR SU	FD435K743AA ARM & BSHG ASY RR SU Rapide S, From 15MY	-	2	Enquire
-	DD435B530AA	ARM & BUSH ASSY RR	DD435B530AA ARM & BUSH ASSY RR Rapide S	-	1	Enquire
-	AD435B531AA	ARM AND BUSHING ASSY REAR SUSPENSION LOWER REAR LH	AD435B531AA ARM AND BUSHING ASSY REAR SUSPENSION LOWER REAR LH -	-	1	Enquire
-	DD435B531AA	ARM & BUSH ASSY RR	DD435B531AA ARM & BUSH ASSY RR Rapide S	-	1	Enquire
1	AD435A970AB	KNUCKLE REAR WHL RH	AD435A970AB KNUCKLE REAR WHL RH -	-	1	Enquire
2	AD432B663AA	Suspension Hub and Bearing	AD432B663AA Suspension Hub and Bearing -	-	2	Enquire
4	AD435K742AA	ARM & BUSHING ASSY REAR SUSPENSION UPPER RH	AD435K742AA ARM & BUSHING ASSY REAR SUSPENSION UPPER RH -	-	1	Enquire
5	SY9Y23943XBW	DOOR ASSY TRIM LH	SY9Y23943XBW DOOR ASSY TRIM LH -	-	4	Enquire
6	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	10	Enquire
7	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	4	Enquire
8	AD435B530AA	ARM AND BUSH ASSY REAR SUSPENSION LWR REAR RH	AD435B530AA ARM AND BUSH ASSY REAR SUSPENSION LWR REAR RH -	-	1	Enquire
9	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE -	-	2	Enquire
10	701337PK	Nut-M14 Hex Flange P/T PLAS 10 Pack of 10	701337PK Nut-M14 Hex Flange P/T PLAS 10 Pack of 10 -	-	2	Enquire
11	AD43487029AA	BOLT M14 x 100 HEX FLANGE CONE (S442)	AD43487029AA BOLT M14 x 100 HEX FLANGE CONE (S442) -	-	2	Enquire
12	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric -	-	2	Enquire
13	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric -	-	4	Enquire
14	BG435B551AA	Arm Assy, Rear Toe Control	BG435B551AA Arm Assy, Rear Toe Control -	-	2	Enquire
15	AD435K978AA	ECCENTRIC BOLT M12 x 90	AD435K978AA ECCENTRIC BOLT M12 x 90 -	-	2	Enquire
16	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric -	-	2	Enquire
