Front Suspension Assembly of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

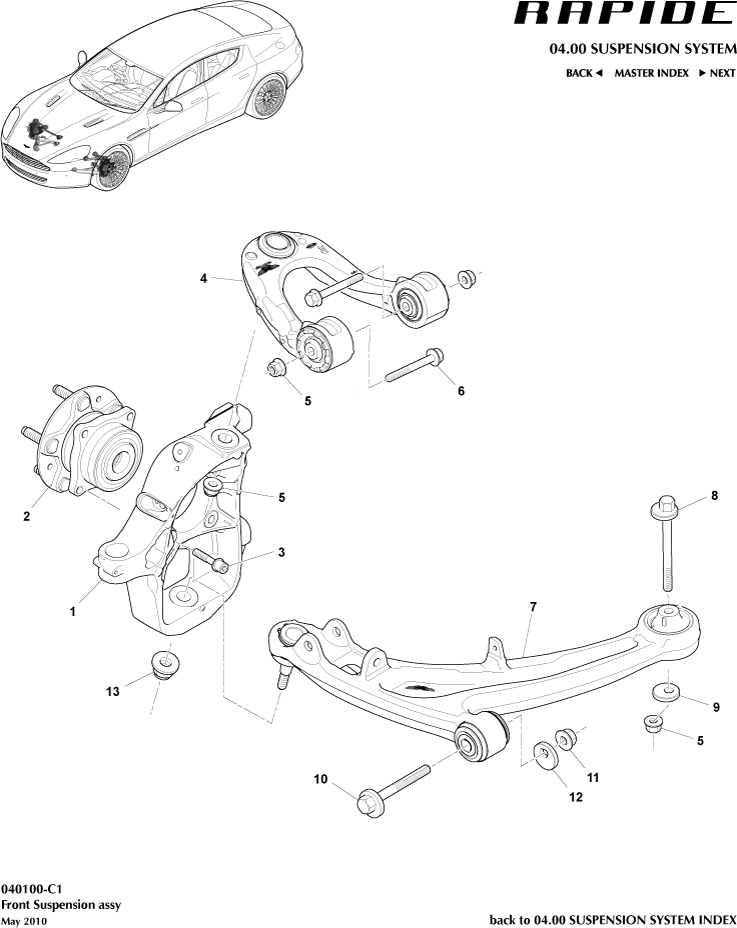

Aston Martin GT RAPIDE (2010-2019) - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD433K186AA	KNL ASY-FRT WHL RH	FD433K186AA KNL ASY-FRT WHL RH From 15MY	-	1	Enquire
-	AY933K186AB	Knuckle Assy, Front, RH	AY933K186AB Knuckle Assy, Front, RH AMR	-	1	Enquire
-	AD433K185AB	KNL ASY-FRT WHL LH	AD433K185AB KNL ASY-FRT WHL LH Up To 15MY	-	1	Enquire
-	FD433K185AA	KNL ASY-FRT WHL LH	FD433K185AA KNL ASY-FRT WHL LH From 15MY	-	1	Enquire
-	AY933K185AB	Knuckle Assy, Front, LH	AY933K185AB Knuckle Assy, Front, LH AMR	-	1	Enquire
-	DD433084AB	Arm Upper Front Suspension RH	DD433084AB Arm Upper Front Suspension RH Rapide S	-	1	Enquire
-	AD433091AA	FRONT SUSPENSION LH UPPER ARM AND BUSH	AD433091AA FRONT SUSPENSION LH UPPER ARM AND BUSH -	-	1	Enquire
-	DD433091AB	Arm Upper Front Suspension LH	DD433091AB Arm Upper Front Suspension LH Rapide S	-	1	Enquire
-	AD433A053AA	Arm & Bush Front Suspension Lower LH	AD433A053AA Arm & Bush Front Suspension Lower LH -	-	1	Enquire
1	AD433K186AB	KNL ASY-FRT WHL RH	AD433K186AB KNL ASY-FRT WHL RH Up To 15MY	-	1	Enquire
2	AD432B663AA	Suspension Hub and Bearing	AD432B663AA Suspension Hub and Bearing -	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Bearing to Knuckle	-	8	Enquire
4	AD433084AA	FRONT SUSPENSION RH UPPER ARM AND BUSH	AD433084AA FRONT SUSPENSION RH UPPER ARM AND BUSH -	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE -	-	8	Enquire
6	703180	BOLT M12 x 90 HEX FLNG 10 CHROME FREE	703180 BOLT M12 x 90 HEX FLNG 10 CHROME FREE -	-	4	Enquire
7	AD433A052AA	Arm & Bush, Front Suspension Lower, RH	AD433A052AA Arm & Bush, Front Suspension Lower, RH -	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front -	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric -	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric -	-	2	Enquire
11	701337PK	Nut-M14 Hex Flange P/T PLAS 10 Pack of 10	701337PK Nut-M14 Hex Flange P/T PLAS 10 Pack of 10 -	-	2	Enquire
12	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric -	-	2	Enquire
13	AD430907AA	NUT AND WASHER M14 HEX FL PT PLAS 10	AD430907AA NUT AND WASHER M14 HEX FL PT PLAS 10 -	-	2	Enquire
