Powertrain Mountings

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Powertrain Mountings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

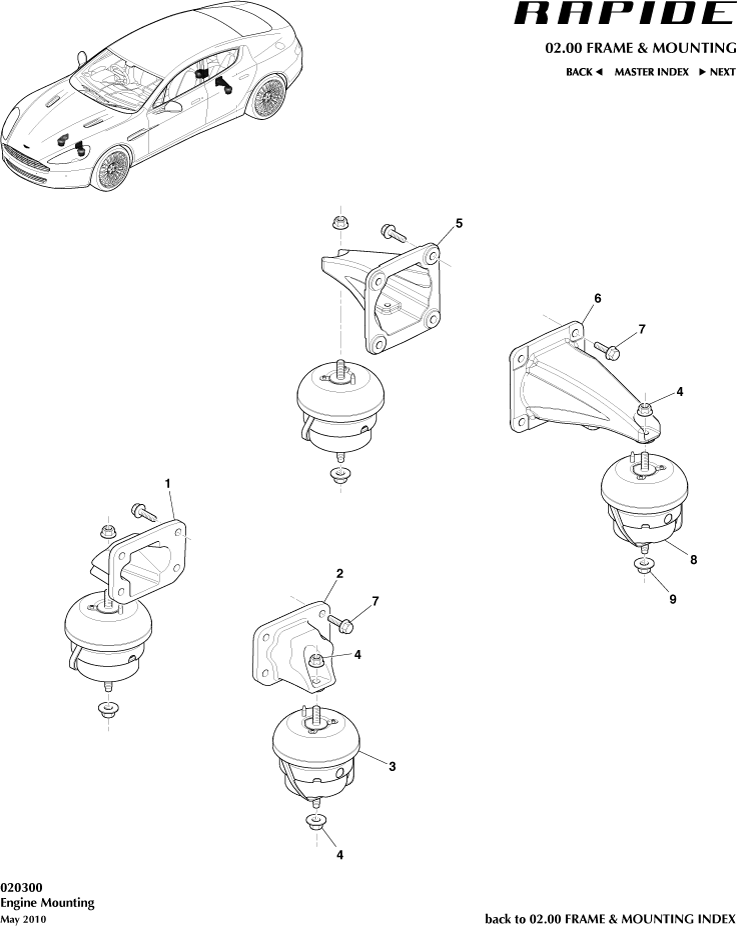

Powertrain Mountings of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG436030AA
SUPT-ENG FRT RH
Rapide S 		- 1 Enquire
- DG436031AA
SUPT-ENG FRT LH
Rapide S 		- 1 Enquire
- CD336A003AA
Hydramount, Engine
Rapide S 		- 2 Enquire
- FD437M125DC
MNT TO TRANS BRKT RH
From 15MY 		- 1 Enquire
- FD437M125CC
MNT TO TRANS BRKT LH
From 15MY 		- 1 Enquire
- CD336068AA
Hydramount, Transmission
From VIN F03000, To 15MY, Rapide S 		- 2 Enquire
- FD436068AA
INS ASY ENG RR SUPT
From 15MY, Rapide S 		- 2 Enquire
1 4G436030AB
BRACKET - ENGINE MOUNT - RHS
- 		- 1 Enquire
2 4G436031AC
BRACKET - ENGINE MOUNT - LHS
- 		- 1 Enquire
3 8D336A003AB
Hydramount Engine
- 		- 2 Enquire
4 703167
NUT M10 HEX FLANGE CHROME FREE
- 		- 6 Enquire
5 AD437M125DB
MOUNT TO TRANSMISSN BRACKET - RH AUTO
Up To 15MY 		- 1 Enquire
6 AD437M125CB
MOUNT TO TRANSMISION BRACKET LH AUTO
Up To 15MY 		- 1 Enquire
7 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 16 Enquire
8 4G436068BC
Transmission Hydramount
Up To VIN F02999 		- 2 Enquire
