Centre Stack of Aston Martin Aston Martin GT DBS (2007-2012)

View All

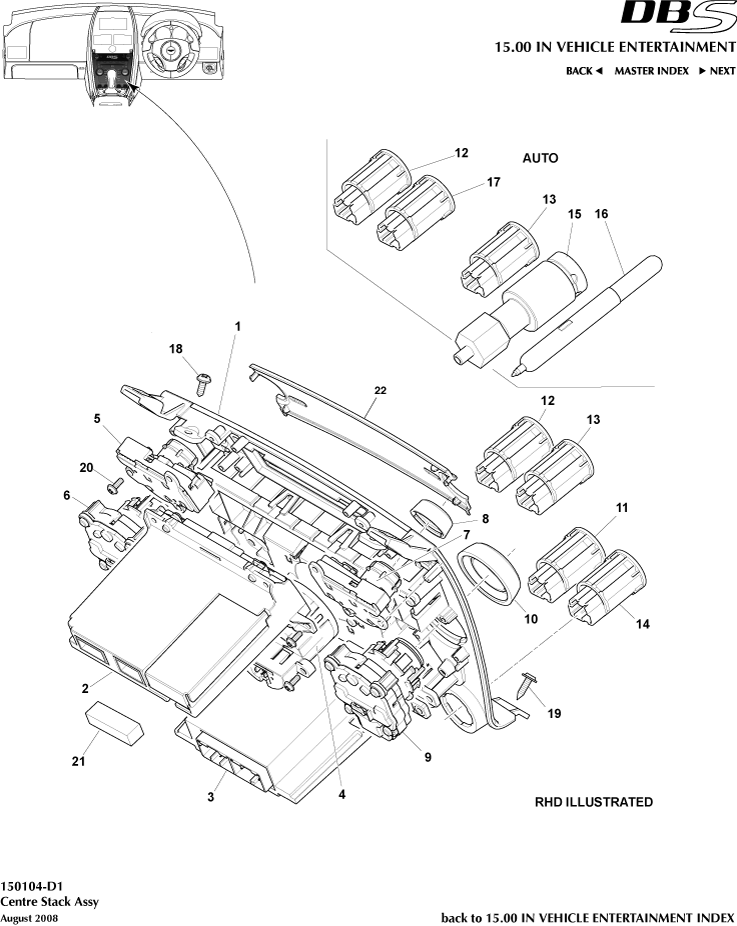

Aston Martin GT DBS (2007-2012) - Centre Stack

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y04790XCW	IP MAIN ASSEMBLY LHD	SY9Y04790XCW IP MAIN ASSEMBLY LHD LHD	-	1	Enquire
-	KY9YMS2106040AA	1/4-28 UNF NUT	KY9YMS2106040AA 1/4-28 UNF NUT LHD 9.5MY	-	1	Enquire
-	8D3318C858DB	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858DB CENTRE STACK ASSEMBLY PIANO BLACK LHD	-	1	Enquire
-	SY9Y17A835AB	NUMBER PLATE PLINTH	SY9Y17A835AB NUMBER PLATE PLINTH LHD 9.5MY	-	1	Enquire
-	8D3318C858AC	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858AC CENTRE STACK ASSEMBLY PIANO BLACK LHD	-	1	Enquire
-	SY9Y17528BA	WIPER BLADE RHS LHD	SY9Y17528BA WIPER BLADE RHS LHD LHD	-	1	Enquire
-	RY5313E777AB	LHS DP RLSE HANDLE	RY5313E777AB LHS DP RLSE HANDLE RHD	-	1	Enquire
-	SY9Y20122BC	DOOR ASSY RH	SY9Y20122BC DOOR ASSY RH RHD 9.5MY	-	1	Enquire
-	8D3318C858HA	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C858HA CENTRE STACK ASSEMBLY PIANO BLACK RHD	-	1	Enquire
-	9D3318C858CA	CENTRE STACK ASSEMBLY PIANO BLACK	9D3318C858CA CENTRE STACK ASSEMBLY PIANO BLACK RHD 9.5MY	-	1	Enquire
-	SY9Y04792WBW	IP MAIN ASSEMBLY LHD	SY9Y04792WBW IP MAIN ASSEMBLY LHD RHD	-	1	Enquire
-	SY9Y166563AC	FRT WHL ARH LNR LH	SY9Y166563AC FRT WHL ARH LNR LH RHD	-	1	Enquire
-	8D3318C815BB	CENTRE STACK ASSY	8D3318C815BB CENTRE STACK ASSY -	-	1	Enquire
-	8D3318C815CB	CENTRE STACK ASSY	8D3318C815CB CENTRE STACK ASSY -	-	1	Enquire
-	8D3318C815AB	CENTRE STACK ASSEMBLY PIANO BLACK	8D3318C815AB CENTRE STACK ASSEMBLY PIANO BLACK -	-	1	Enquire
-	9G4318C815AB	CENTRE STACK ASSY	9G4318C815AB CENTRE STACK ASSY -	-	1	Enquire
-	CD3318C815GA	CENTRE STACK ASSY	CD3318C815GA CENTRE STACK ASSY 12MY	-	1	Enquire
-	SY9Y10573AA	AIR TRIPS LH	SY9Y10573AA AIR TRIPS LH 12MY	-	1	Enquire
-	9G4313D734AB	SWITCH MAIN BODY	9G4313D734AB SWITCH MAIN BODY -	-	1	Enquire
-	8D3313D734EB	SWITCH MAIN BODY	8D3313D734EB SWITCH MAIN BODY -	-	1	Enquire
-	CD3313D734AA	SWITCH MAIN BODY	CD3313D734AA SWITCH MAIN BODY 12MY	-	1	Enquire
-	CD3313D734BA	CENTRE STACK MODULES	CD3313D734BA CENTRE STACK MODULES 12MY	-	1	Enquire
-	CG4318C612AA	CCM/ECU	CG4318C612AA CCM/ECU 12MY	-	1	Enquire
-	CG4318817AA	AUDIO CONTROL KNOB	CG4318817AA AUDIO CONTROL KNOB 12MY	-	2	Enquire
-	AD333710106	SWITCH KIT-GLASS DBS MANUAL (MADE TO ORDER)	AD333710106 SWITCH KIT-GLASS DBS MANUAL (MADE TO ORDER) Manual	-	1	Enquire
-	AD333710107	SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER)	AD333710107 SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER) Auto	-	1	Enquire
-	AD332C418BA	ACTIVE DAMPING SWTCH	AD332C418BA ACTIVE DAMPING SWTCH 11MY, Glass	-	1	Enquire
-	AD3315K237AA	FOGLAMP SWITCH	AD3315K237AA FOGLAMP SWITCH 11MY, Glass	-	1	Enquire
-	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER 12MY	-	1	Enquire
-	AD3314B626BA	SPORTS MODE SWITCH	AD3314B626BA SPORTS MODE SWITCH 11MY, Glass	-	1	Enquire
1	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 -	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE -	-	1	Enquire
3	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU -	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock -	-	1	Enquire
5	8D3313D734AB	AUDIO CTRL MODULE	8D3313D734AB AUDIO CTRL MODULE -	-	1	Enquire
6	8D3318C612BB	HVAC CTRL MODULE	8D3318C612BB HVAC CTRL MODULE -	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control -	-	1	Enquire
8	8D3318817AB	AUDIO CONROL KNOB	8D3318817AB AUDIO CONROL KNOB -	-	2	Enquire
9	8D3318C612CB	HVAC CTRL MODULE	8D3318C612CB HVAC CTRL MODULE -	-	1	Enquire
10	8D3318783AB	HVAC CTRL KNOB	8D3318783AB HVAC CTRL KNOB -	-	2	Enquire
12	8D332C418BA	ACTIVE DAMPING SWTCH	8D332C418BA ACTIVE DAMPING SWTCH -	-	1	Enquire
15	9G4356051BA	PEN HOLDER	9G4356051BA PEN HOLDER 9.5MY	-	1	Enquire
16	9G4319G243AA	LAMY PEN	9G4319G243AA LAMY PEN 9.5MY	-	1	Enquire
17	9D3314B626AA	SPORTS MODE SWITCH	9D3314B626AA SPORTS MODE SWITCH 9.5MY	-	1	Enquire
18	701660	SCREW 4.2x13 FLG T/F	701660 SCREW 4.2x13 FLG T/F -	-	2	Enquire
19	701157	SCREW&WSHR 4.2x16	701157 SCREW&WSHR 4.2x16 -	-	2	Enquire
21	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE 12MY	-	1	Enquire
22	AG4304708BB	ICM LENS	AG4304708BB ICM LENS 9.5MY on	-	1	Enquire
