Aston Martin GT DBS (2007-2012) - Battery Cables

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

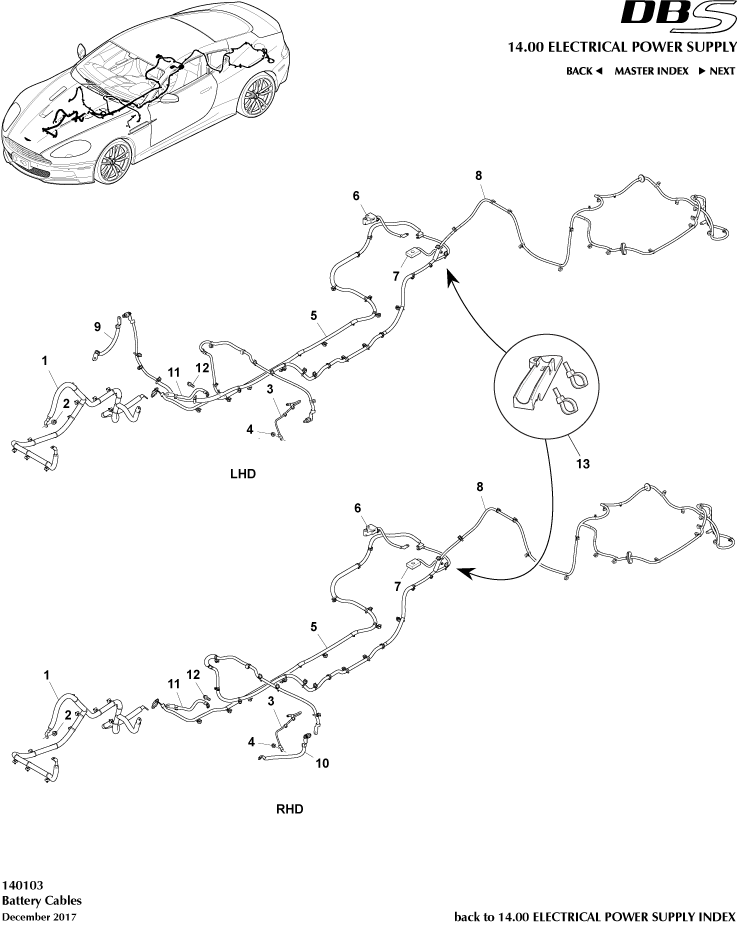

Battery Cables of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G433710114
TERMINAL POST ASSY
- 		- 1 Enquire
- 4G43E820201AA
M8 HALF NUT HEX BRASS
- 		- 2 Enquire
- 4G4310400AA
M8 COPPER SPRING WASHER
- 		- 2 Enquire
- 9G4314B278AC
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD
9.5MY 		- 1 Enquire
- 920033583
MCPURA WELCOME KIT
08MY 		- 1 Enquire
- 9G4314B278BC
CBL ASSY TO BULKHEAD STUD CLEAN FEED COUPE RHD
09MY 		- 1 Enquire
- AD3314B278FB
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV RHD
10MY Volante 		- 1 Enquire
- AD3314B278EB
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED CONV LHD
10MY Volante 		- 1 Enquire
- 4G433710114
TERMINAL POST ASSY
- 		- 1 Enquire
- 4G43E820201AA
M8 HALF NUT HEX BRASS
- 		- 2 Enquire
- 4G4310400AA
M8 COPPER SPRING WASHER
- 		- 2 Enquire
1 8D3310C310AB
CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART
- 		- 1 Enquire
2 703739
Nut, M8, Hex Flange Head
- 		- 1 Enquire
3 4G4314A280DD
Earth Strap, Bonnet
- 		- 1 Enquire
4 702840
Nut & Washer, M6, Hex Flange Head
- 		- 1 Enquire
5 7G4314305AC
CABLE ASSY BDS TO BULKHEAD STUD DIRTY FEED
- 		- 1 Enquire
6 4G4314300AD
Cable Assembly, Battery to BDS
- 		- 1 Enquire
7 4G4314301AD
Cable Assembly, Battery to GND
- 		- 1 Enquire
8 8G4314B278AB
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD
08MY 		- 1 Enquire
9 4G4314B278DD
Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box
- 		- 1 Enquire
10 KY9Y121920BA
REACTION PIN ROCK LC
- 		- 1 Enquire
11 6G4314A280AA
Earth Strap, Engine
- 		- 1 Enquire
12 703200
SCREW M10x25 HEX FLG CHROME FREE
- 		- 1 Enquire
13 GD333710114
ROUTING BLOCK KIT
Up to VIN E03385 Coupe, VIN E02492 to E13384 Volante 		- 1 Enquire
