Cooler, Hoses & Reservoir, LHD of Aston Martin Aston Martin GT DBS (2007-2012)

View All

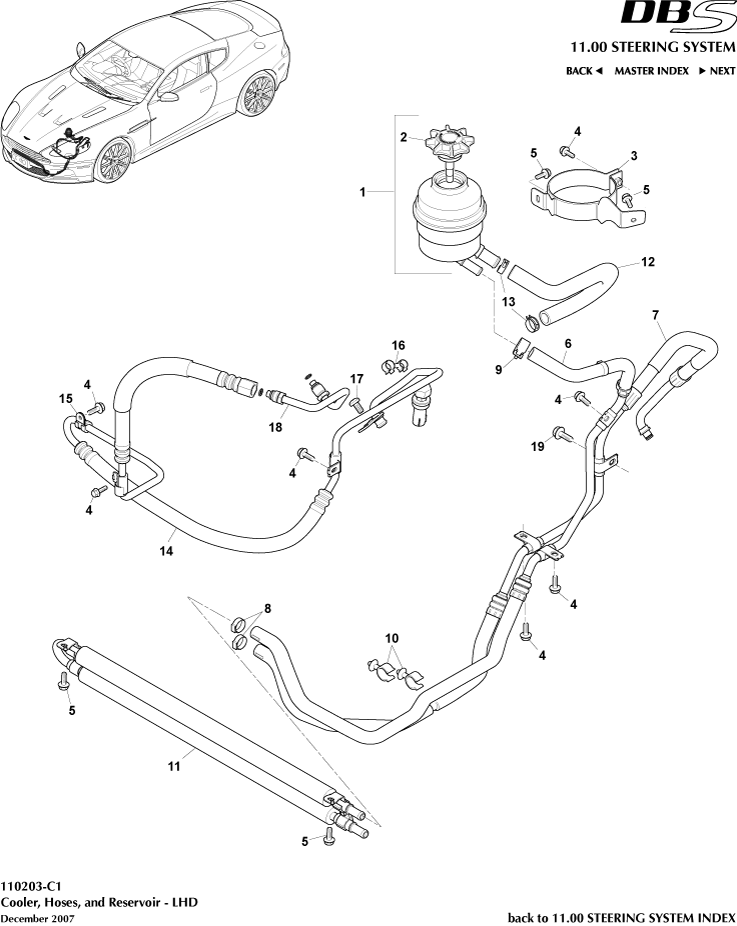

Aston Martin GT DBS (2007-2012) - Cooler, Hoses & Reservoir, LHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	699999S	POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM	699999S POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM Up To VIN E11520, See SB-11-0300	-	A/R	Enquire

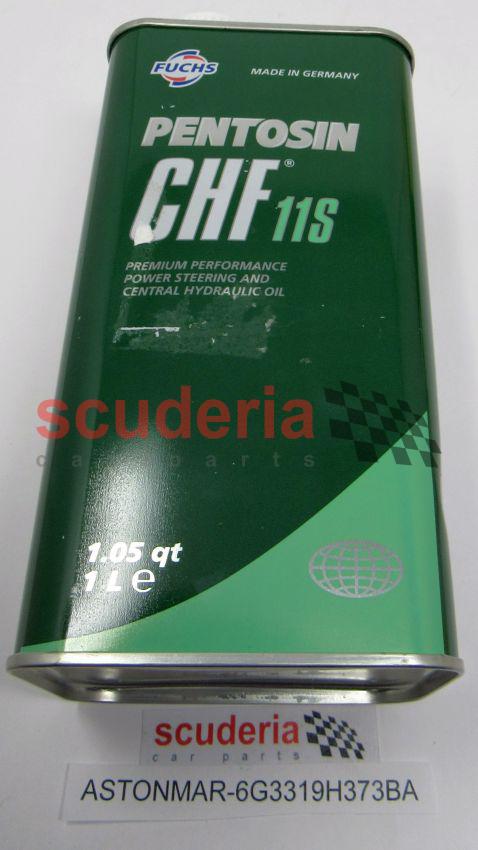

-	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	6G3319H373BA Fluid Hydraulic ASM S-Cam (Service) 1 Litre From VIN E11521, Pentosin CHF11S. See SB-11-0300	-	A/R	Enquire
1	4G433R700AA	RESVR & CAP ASY-PWR	4G433R700AA RESVR & CAP ASY-PWR -	-	1	Enquire
2	00RG035	REEVITE - 15.9x3.2x8x82x5.4	00RG035 REEVITE - 15.9x3.2x8x82x5.4 -	-	1	Enquire
3	4G433489AC	BRACKET ASSY - PAS RESERVOIR	4G433489AC BRACKET ASSY - PAS RESERVOIR -	-	1	Enquire
4	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	5	Enquire
5	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
6	8D333A713AB	RETURN HOSE COOLER TO RESERVOIR	8D333A713AB RETURN HOSE COOLER TO RESERVOIR -	-	1	Enquire
7	8D333F558AC	Hose Return Gear to Cooler LHD	8D333F558AC Hose Return Gear to Cooler LHD -	-	1	Enquire
8	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE -	-	2	Enquire
9	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia -	-	1	Enquire
10	4G436C727AA	HOSE CLIP (RAYMOND 81442)	4G436C727AA HOSE CLIP (RAYMOND 81442) -	-	2	Enquire
11	8D333D746AB	COOLING LOOP POWER STEERING	8D333D746AB COOLING LOOP POWER STEERING -	-	1	Enquire
12	4G433E525AA	RESERVOIR TO PUMP SUCTION	4G433E525AA RESERVOIR TO PUMP SUCTION -	-	1	Enquire
13	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire
14	4G433A719AE	HOSE ASSY PAS PRESSURE LINE PUMP TO GEAR LHD	4G433A719AE HOSE ASSY PAS PRESSURE LINE PUMP TO GEAR LHD -	-	1	Enquire
15	694891	P-CLIP	694891 P-CLIP -	-	1	Enquire
17	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE -	-	1	Enquire
18	4G433494AA	PUMP OUTLET TUBE - HIGH PRESSURE	4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE Includes O rings	-	1	Enquire
19	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	1	Enquire
