Clutch System, RHD of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Clutch System, RHD

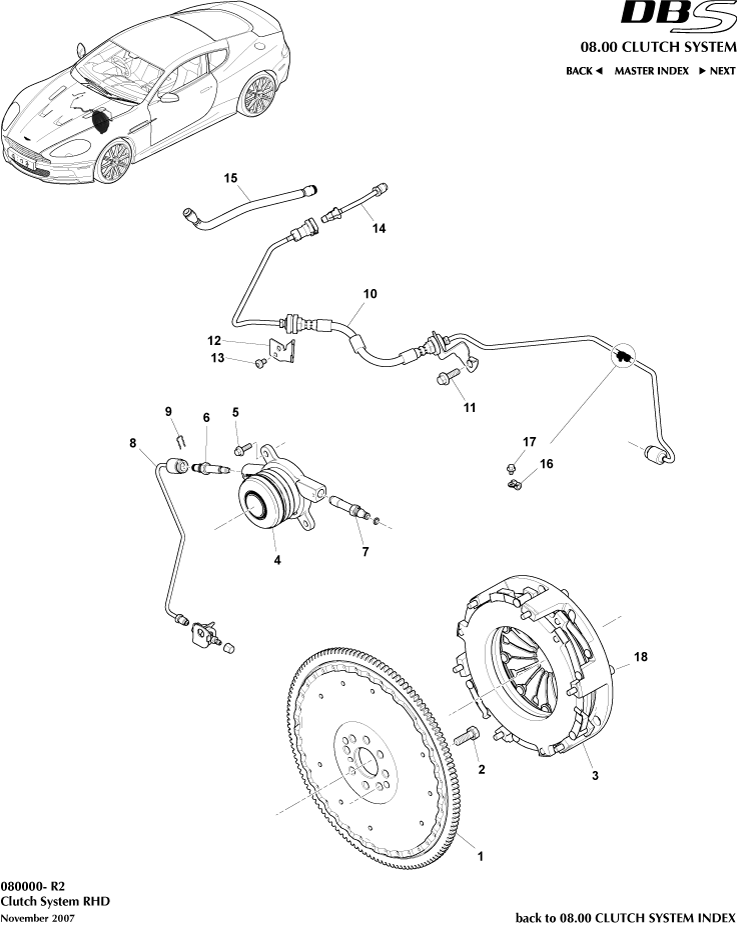

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G431111200	Clutch Kit	4G431111200 Clutch Kit Contains items marked (Calibration required when changing to Valeo clutch)*	-	1	Enquire
-	8D336375CA	Flywheel Assembly Single Mass	8D336375CA Flywheel Assembly Single Mass * Please use latest level when replacement fitted	-	1	Enquire
-	AD237A564AA	Slave Cylinder, Clutch	AD237A564AA Slave Cylinder, Clutch * Please use latest level when replacement fitted	-	1	Enquire
1	8D336375AB	FLYWHEEL ASSEMBLY SINGLE MASS	8D336375AB FLYWHEEL ASSEMBLY SINGLE MASS -	-	1	Enquire
2	697786PK	Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5	697786PK Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5 * Pack of 5. Do not re-use, change each time	-	8	Enquire
3	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM * Please use latest level when replacement fitted	-	1	Enquire
4	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder -	-	1	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	2	Enquire
8	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED -	-	1	Enquire
10	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD RHD	-	1	Enquire
11	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	1	Enquire
12	4G43R7N630BB	BRACKET CLUTCH LINE RHD	4G43R7N630BB BRACKET CLUTCH LINE RHD -	-	1	Enquire
13	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK -	-	2	Enquire
14	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD RHD	-	1	Enquire
15	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl -	-	1	Enquire
16	699632	'P' CLIP	699632 'P' CLIP -	-	1	Enquire
17	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE -	-	1	Enquire
18	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head * Please use latest level when replacement fitted	-	6	Enquire
