Aston Martin GT DBS (2007-2012) - Transaxle, Manual

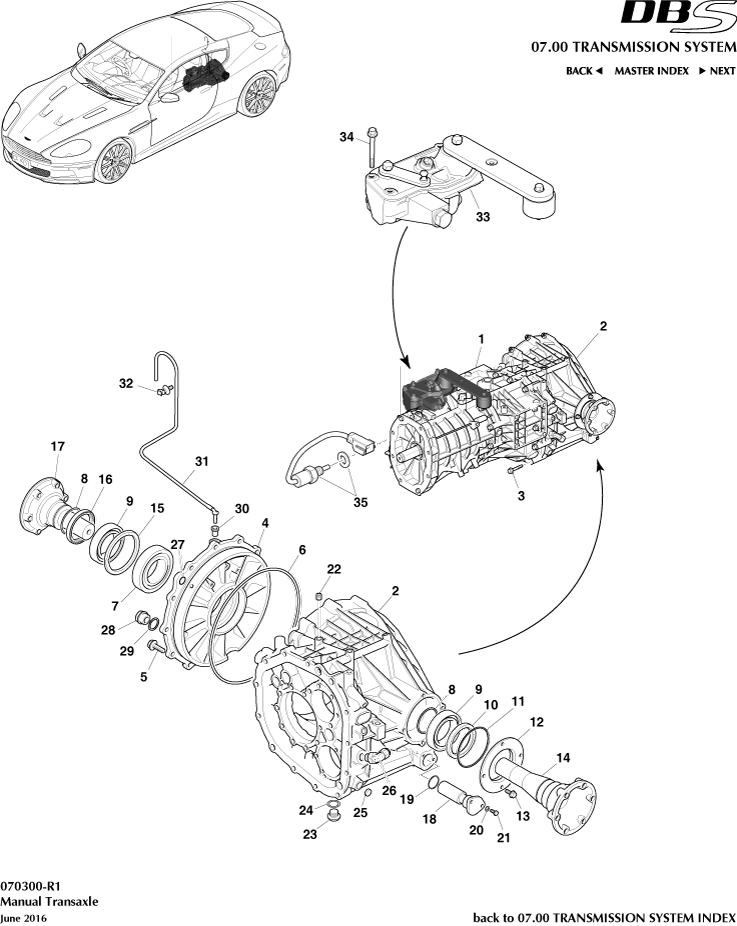

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4319G506AA	MOLYKOTE 7409 MAN SP	4G4319G506AA MOLYKOTE 7409 MAN SP -	-	-	Enquire
1	8D337002AD	TRANS AX ASY	8D337002AD TRANS AX ASY -	-	1	Enquire
2	4G432710611	HOUSING-DIFFERENTIAL	4G432710611 HOUSING-DIFFERENTIAL -	-	1	Enquire
3	702815	BOLT M8 x 30	702815 BOLT M8 x 30 Trans to Diff	-	13	Enquire
4	4G432710606	COVER - DIFFERENTIAL	4G432710606 COVER - DIFFERENTIAL -	-	1	Enquire
5	702815	BOLT M8 x 30	702815 BOLT M8 x 30 -	-	12	Enquire
7	4G432710605	Bearing, Differential Output	4G432710605 Bearing, Differential Output -	-	1	Enquire
8	702813	SHIM	702813 SHIM -	-	2	Enquire
9	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft -	-	2	Enquire
10	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 -	-	1	Enquire
11	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87 -	-	1	Enquire
12	4G432710602	BEARING - DIF OUTPUT SHAFT LEFT HAND	4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND -	-	1	Enquire
13	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head -	-	4	Enquire
14	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF -	-	1	Enquire
15	702814	SHIM	702814 SHIM -	-	1	Enquire
16	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 -	-	1	Enquire
17	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF -	-	1	Enquire
18	4G432710490	Filter, Oil	4G432710490 Filter, Oil -	-	1	Enquire
19	4G432710491	O Ring 2.62 x 20.63	4G432710491 O Ring 2.62 x 20.63 -	-	1	Enquire
20	702821	Washer, 5.3 x 0.5	702821 Washer, 5.3 x 0.5 -	-	2	Enquire
21	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12 -	-	2	Enquire
22	702817	Set Screw, M8 x 10	702817 Set Screw, M8 x 10 -	-	6	Enquire
25	702818	PLUG	702818 PLUG -	-	1	Enquire
26	SY9Y20011DA	BODYSIDE CLOSER - LH	SY9Y20011DA BODYSIDE CLOSER - LH -	-	1	Enquire
27	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92 -	-	1	Enquire
28	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22 -	-	1	Enquire
29	4G432710245	Copper Washer D/Plugg	4G432710245 Copper Washer D/Plugg -	-	1	Enquire
32	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe -	-	1	Enquire
34	702822	BOLT M6 x 50	702822 BOLT M6 x 50 -	-	2	Enquire
35	6G338F875AA	REVERSE SWITCH AND WASHER KIT	6G338F875AA REVERSE SWITCH AND WASHER KIT -	-	2	Enquire
