Differential of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Differential

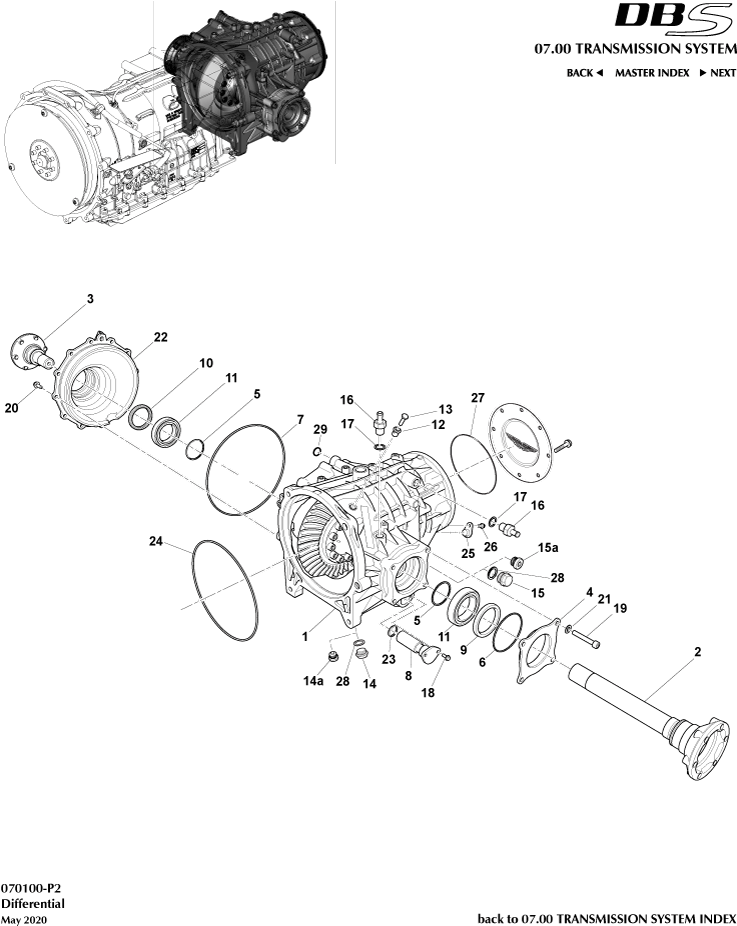

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD332710005	Output Shaft, LH	CD332710005 Output Shaft, LH From VIN E12957	-	1	Enquire
-	SY9Y13N408AC	CHMSL	SY9Y13N408AC CHMSL From VIN E12957	-	1	Enquire
-	704349PK	TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12	704349PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 Pack of 12	-	A/R	Enquire
1	9G434200AB	DIFFERENTIAL AUTO	9G434200AB DIFFERENTIAL AUTO Up to VIN E12957, 96mm 1/2 shaft pitch circle diameter	-	1	Enquire
2	4G432710480	OUTPUT SHAFT - LEFT SIDE DIFF	4G432710480 OUTPUT SHAFT - LEFT SIDE DIFF Up to VIN E12957	-	1	Enquire
3	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF Up to VIN E12957	-	1	Enquire
4	4G432710481	Cover, Output Shaft, Differential	4G432710481 Cover, Output Shaft, Differential -	-	1	Enquire
5	702813	SHIM	702813 SHIM -	-	2	Enquire
7	4G432710500	O Ring, 3.53 x 228.19	4G432710500 O Ring, 3.53 x 228.19 -	-	1	Enquire
8	4G432710490	Filter, Oil	4G432710490 Filter, Oil -	-	1	Enquire
9	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 -	-	1	Enquire
10	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 -	-	1	Enquire
11	CD332710007	Ball bearing, 50 x 80 x 16	CD332710007 Ball bearing, 50 x 80 x 16 -	-	2	Enquire
12	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather -	-	1	Enquire
13	4G432710489	PLUG - BREATHER	4G432710489 PLUG - BREATHER -	-	1	Enquire
14	00RC113	SPACER - NYLON - 6.6X17.45X1.05	00RC113 SPACER - NYLON - 6.6X17.45X1.05 -	-	1	Enquire
14a	CD332710004	Plug, Magnetic, M18 x 1.5	CD332710004 Plug, Magnetic, M18 x 1.5 -	-	1	Enquire
15	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22 -	-	1	Enquire
15a	SY9YC025B39ABW	A PILLAR ASSY LH ROW	SY9YC025B39ABW A PILLAR ASSY LH ROW -	-	1	Enquire
16	4G432710494	Union, Oil Cooler	4G432710494 Union, Oil Cooler -	-	2	Enquire
17	4G432710487	Gasket, Flat, 16 x 22	4G432710487 Gasket, Flat, 16 x 22 -	-	2	Enquire
18	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12 -	-	2	Enquire
19	4G432710485	Screw, M8 x 30	4G432710485 Screw, M8 x 30 -	-	4	Enquire
20	4G432710499	Screw, M8 x 25	4G432710499 Screw, M8 x 25 -	-	12	Enquire
21	CD332710008	Washer, Elastic Curve	CD332710008 Washer, Elastic Curve -	-	4	Enquire
22	CD332710009	Cover, Differential Assy	CD332710009 Cover, Differential Assy -	-	1	Enquire
23	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) Pack of 10	-	1	Enquire
24	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	4G437J271AB O Ring, Transmission Adapter Plate, Rear -	-	1	Enquire
25	4G432710495	SPEED SENSOR	4G432710495 SPEED SENSOR -	-	1	Enquire
26	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head -	-	1	Enquire
28	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) Pack of 10	-	2	Enquire
