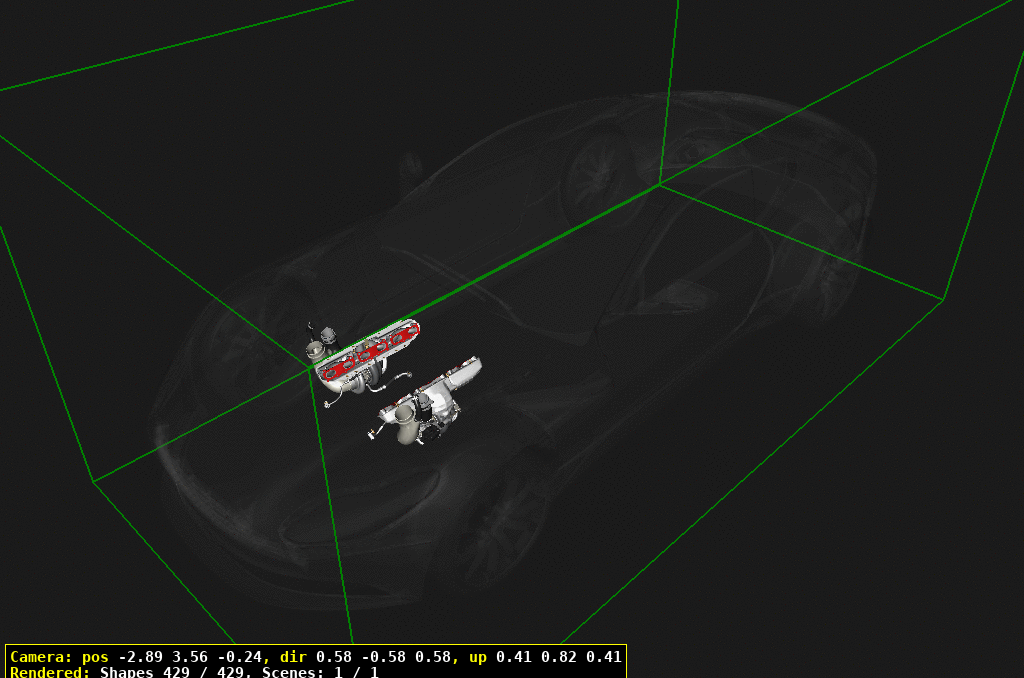

Exhaust Manifolds and Turbos of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Exhaust Manifolds and Turbos

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	HY539429AD	EXH MANIFOLD CAST	HY539429AD EXH MANIFOLD CAST	-	2	Enquire
30	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	20	Enquire
40	HY539448AC	EX MANIF GSKT	HY539448AC EX MANIF GSKT	-	6	Enquire
50	HY539P441AA	NUT EXH MANIF	HY539P441AA NUT EXH MANIF ALWAYS REPLACE. DO NOTRE-USE	-	24	Enquire
60	HY539S425BC	BOLT TRBCH TO MANIF	HY539S425BC BOLT TRBCH TO MANIF ALWAYS REPLACE. DO NOTRE-USE	-	4	Enquire
70	702680	NUT M6 VVT BUSH CARRIER - B BANK	702680 NUT M6 VVT BUSH CARRIER - B BANK	-	4	Enquire
80	HY539A462AB	MANIFOLD HS (CENTRE)	HY539A462AB MANIFOLD HS (CENTRE)	-	2	Enquire
90	HY539A462DB	MANIFOLD HS (RH)	HY539A462DB MANIFOLD HS (RH)	-	2	Enquire
100	HY539A462CB	MANIFOLD HS (LH)	HY539A462CB MANIFOLD HS (LH)	-	2	Enquire
110	HY539A471AB	TAB LOCKING	HY539A471AB TAB LOCKING ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
120	HY539A471BB	TAB LOCKING	HY539A471BB TAB LOCKING ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
130	HY539S425AC	BOLT TRBCH TO MANIF	HY539S425AC BOLT TRBCH TO MANIF -> VIN L11064. ALWAYSREPLACE. DO NOT RE-USE	-	2	Enquire
131	NY739S425AA	BOLT TRBCH TO MANIF	NY739S425AA BOLT TRBCH TO MANIF VIN L11065->. ALWAYSREPLACE. DO NOT RE-USE	-	2	Enquire
200	HY536466AA	TURBO SPIRAL GSKT	HY536466AA TURBO SPIRAL GSKT	-	2	Enquire
210	HY539K308AB	TUBE-AIR BYP VLV INL	HY539K308AB TUBE-AIR BYP VLV INL LH	-	1	Enquire
220	HY539K308BB	TUBE-AIR BYP VLV INL	HY539K308BB TUBE-AIR BYP VLV INL RH	-	1	Enquire
230	HY532976AB	TUB-MANF TO AIR COMP	HY532976AB TUB-MANF TO AIR COMP LH	-	1	Enquire
240	HY532976BB	TUB-MANF TO AIR COMP	HY532976BB TUB-MANF TO AIR COMP RH	-	1	Enquire
250	HY539G438AE	TRBCH ASY LH	HY539G438AE TRBCH ASY LH LH	-	1	Enquire
260	HY539G438BE	TRBCH ASY RH	HY539G438BE TRBCH ASY RH RH	-	1	Enquire
270	HY539G440BB	TUB ASY TRBCH OIL	HY539G440BB TUB ASY TRBCH OIL	-	1	Enquire
280	HY539G440AC	TUB ASY TRBCH OIL	HY539G440AC TUB ASY TRBCH OIL	-	1	Enquire
290	HY539G441AA	TUB ASY TRBCH OIL RT	HY539G441AA TUB ASY TRBCH OIL RT	-	1	Enquire
300	HY539G441CC	TUB ASY TRBCH OIL	HY539G441CC TUB ASY TRBCH OIL	-	1	Enquire
310	4R8Q6N652AA	GSKT TURBO DRAIN	4R8Q6N652AA GSKT TURBO DRAIN	-	2	Enquire
320	HY539E936CB	GSKT COMP-IN DUCT	HY539E936CB GSKT COMP-IN DUCT	-	2	Enquire
330	HY53320786BA	SPIGOT	HY53320786BA SPIGOT	-	2	Enquire
340	HY539E936BA	O-RING 62X2.5	HY539E936BA O-RING 62X2.5	-	2	Enquire
350	55019765	LOGO PLANCIA F167	55019765 LOGO PLANCIA F167	-	1	Enquire
360	HY539E770DB	TURBO INTAKE DUCT RH	HY539E770DB TURBO INTAKE DUCT RH	-	1	Enquire
370	HY53XSC2065AA	VEE BAND CLAMP COMP	HY53XSC2065AA VEE BAND CLAMP COMP	-	2	Enquire
380	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	2	Enquire
390	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	4	Enquire
400	702294	SCREW M6x1.00x16 PAN HD 6 LOBE DRV	702294 SCREW M6x1.00x16 PAN HD 6 LOBE DRV	-	2	Enquire
410	HY53100079BA	BANJO BOLT M12	HY53100079BA BANJO BOLT M12 ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
420	HY53232046BA	COPPER WASHER M12	HY53232046BA COPPER WASHER M12 ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
430	HY5361J17BA	O RING TRB OIL SPLY	HY5361J17BA O RING TRB OIL SPLY ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
440	HY5361J17CA	O RING TRB OIL DRN	HY5361J17CA O RING TRB OIL DRN ALWAYS REPLACE. DO NOTRE-USE	-	2	Enquire
