Aston Martin GT DB11 (2017-2023) - Air Cleaner and Emissions

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

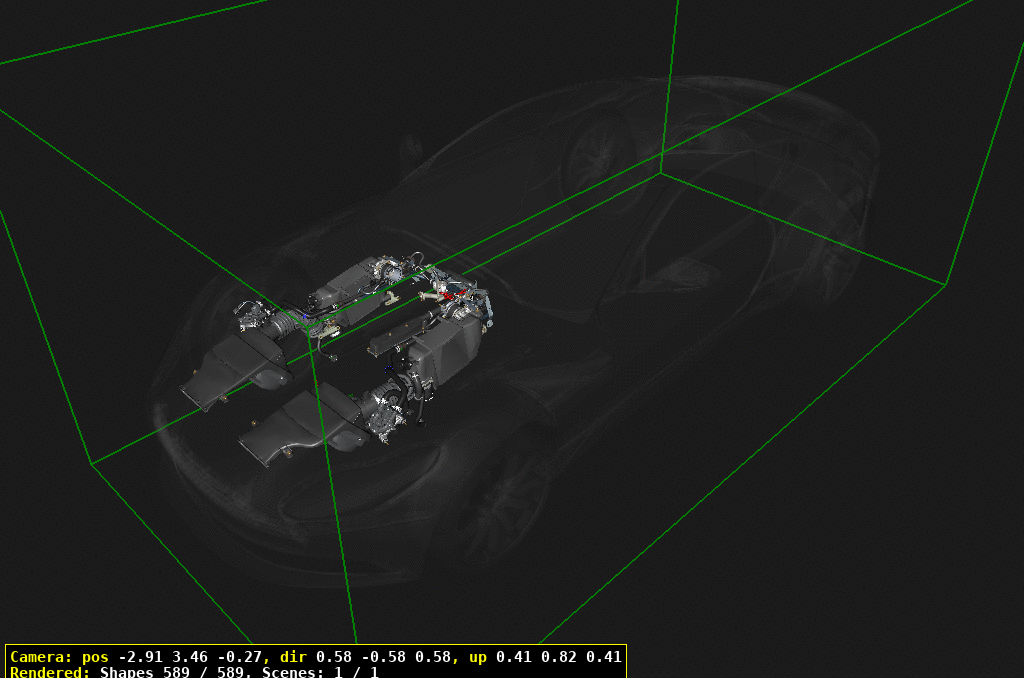

Air Cleaner and Emissions of Aston Martin Aston Martin GT DB11 (2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 HY53401101BA
WRM DRV CLMP 		- 2 Enquire
20 HY539G823AA
GROMMET - AIRBOX MTG 		- 4 Enquire
30 HY539C622AC
RH CLEAN AIR DUCTS 		- 1 Enquire
40 HY539C623AC
LH CLEAN AIR DUCTS 		- 1 Enquire
50 HY5352081AC
LH AIRBOX ASSY
Includes items 60-100 		- 1 Enquire
60 HY539S449AB
PUMP INLET HOSE LH 		- 1 Enquire
70 HY539601AA
AIR FILTER 		- 2 Enquire
80 HY5312B579AA
MAF SENSOR 		- 1 Enquire
90 HY5319214AA
O-RING 5MMX86MM ID 		- 1 Enquire
100 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
110 HY5352080AB
RH AIRBOX ASSY
Includes items 120-160 		- 1 Enquire
120 HY539S464AB
PUMP INLET HOSE RH 		- 1 Enquire
130 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
140 HY5312B579AA
MAF SENSOR 		- 1 Enquire
150 HY5319214AA
O-RING 5MMX86MM ID 		- 1 Enquire
160 HY5317Z606AA
CABLE CLIP 		- 2 Enquire
170 HY539N832AA
BAND CLAMPS 		- 2 Enquire
180 HY539A317AA
CABLE CLIP 		- 1 Enquire
190 55030360
TROLLEY BDGE F167RHT 		- 4 Enquire
192 55030361
VALIGIA 24H BDGE F167RHT 		- 4 Enquire
195 55030362
VALIGIA 48H BDGE F167RHT 		- 4 Enquire
198 HY530410AA
SCREW 3.5X12 PAN TAP 		- 12 Enquire
200 HY539C441AB
SCNDRY AIR PMP LH 		- 1 Enquire
210 HY539C440AB
SCNDRY AIR PMP RH 		- 1 Enquire
220 703196PK
BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)
Pack of 10 		- 4 Enquire
230 704328
Screw, M5 x 20, Torx Pan Head 		- 8 Enquire
240 HY539B449BB
FEED TUBE LH 		- 1 Enquire
250 702544
BOLT M6 x 50 HF PIL 8 		- 2 Enquire
260 HY539B448BB
FEED TUBE RH 		- 1 Enquire
270 HY539F491AA
AIR CONTROL VALVE 		- 2 Enquire
280 HY536G089AA
GASKET 		- 4 Enquire
290 HY539S476BA
PUMP DEL HOSE RH 		- 1 Enquire
295 HY539S476CA
FRONTRHSAIENGINEHOSE 		- 1 Enquire
300 HY539S477BA
PUMP DEL HOSE LH 		- 1 Enquire
305 HY539S477CA
FRONTLHSAIENGINEHOSE 		- 1 Enquire
310 HY539G491AC
BRACKET WIRE HRNS
-> VIN L04218 		- 1 Enquire
311 HY539G491AD
BRACKET WIRE HRNS
VIN L04219-> 		- 1 Enquire
330 HY530810210
VACUUM SOLENOID 		- 2 Enquire
340 55031037
COMPL. POCKET CHANGE TRAY LINER 		- 2 Enquire
350 HY539D438AA
VAC HARNESS-MAIN 		- 1 Enquire
360 HY539D438BA
VAC HARNESS LH 		- 1 Enquire
370 HY539D438CA
VAC HARNESS RH 		- 1 Enquire
380 702298
BOLT M8x16 HEX FLG 		- 4 Enquire
390 HY533678AAAA
CABLE TIE 		- 2 Enquire
400 HY536B752AA
FRONT OIL SPRTR GSKT 		- 1 Enquire
405 HY536B752BA
REAR OIL SPRTR GSKT 		- 1 Enquire
410 HY536B673AB
SEPARATOR ASY OIL
-> VIN L04040 		- 1 Enquire
411 HY536B673AD
SEPARATOR ASY OIL
VIN L04041-> 		- 1 Enquire
420 707155
BOLT-M6 x 65 		- 2 Enquire
430 HY536N66NAB
HOSE ASY CRNKCS BRTH
-> 19.5MY 		- 1 Enquire
431 HY536N66NBA
HOSE ASY CRNKCS BRTH
19.5MY-> 		- 1 Enquire
440 HY5313447BA
OETIKER (34.4-37.6) 		- 1 Enquire
450 HY539E498AB
CONN ASY EMS VAC CNT 		- 1 Enquire
460 HY539E498BB
CONN ASY EMS VAC CNT 		- 1 Enquire
470 HY539E498EA
CONN ASY EMS VAC CNT 		- 1 Enquire
480 HY539E498DB
CONN ASY EMS VAC CNT
-> 19.5MY 		- 1 Enquire
481 HY539E498FA
CONN ASY EMS VAC CNT
19.5MY-> 		- 1 Enquire
490 HY5313447AA
OETIKER (23.9-27.1) 		- 2 Enquire
500 702534
SCREW M6x25 HEX FLG 		- 4 Enquire
600 HY539B051AD
PURGE VALVE
Includes Clip OnIsolator, item 780 		- 1 Enquire
610 HY539S331BC
THROTTLE CUFF 		- 2 Enquire
620 HY539W541AA
ADPT A/INTK CHG 		- 2 Enquire
630 HY539E926AA
T/BODY ASY - LH 		- 1 Enquire
640 HY539E927AA
T/BODY ASSY - RH 		- 1 Enquire
650 HY536K808CA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
660 HY536K808BA
SUPT-ENG CHG AIR BRK 		- 1 Enquire
670 HY539W549BB
ADPT ASY-A/INTK LH
Aluminium 		- 1 Enquire
680 55031109
COMPL. LH ROOF LINKAGE COVER PANEL
Plastic 		- 1 Enquire
690 HY539W549AB
ADPT ASY-A/INTK RH
Aluminium 		- 1 Enquire
700 HY539W549FA
INT MAN AD RH
Plastic 		- 1 Enquire
710 HY539E936AA
O-RING-69 x 2 mm
For Aluminium Adaptor 		- 2 Enquire
720 HY53F9793AB
SEAL DCT TO THRTLE
For Plastic Adaptor 		- 2 Enquire
730 707143
SCREW-M8 x 20 PAN 8
For Aluminium Adaptor 		- 4 Enquire
731 703141
SCREW M8 x 16 CHROME FREE
For Plastic Adaptor 		- 4 Enquire
740 HY53F9793AB
SEAL DCT TO THRTLE 		- 2 Enquire
750 55035832
PANTINA DX GDX OPT PELLE 		- 8 Enquire
760 707129
BOLT-M6x1x30 HEX FLG 		- 8 Enquire
770 HY539E936AA
O-RING-69 x 2 mm 		- 2 Enquire
780 55035833
PANTINA DX GDX TESSUTO
18MY-> Clip On 		- 1 Enquire
800 HY536K775AB
WCAC ASSY LH
2 Piece Charge Air Cooler 		- 1 Enquire
805 HY536K775CB
WCAC ASSY LH
1 Piece Charge Air Cooler 		- 1 Enquire
810 HY536K775BB
WCAC ASSY RH
2 Piece Charge Air Cooler 		- 1 Enquire
815 HY536K775DB
WCAC ASSY RH
1 Piece Charge Air Cooler 		- 1 Enquire
820 HY532976AB
TUB-MANF TO AIR COMP
-> VIN L03722, 2 PieceWCAC 		- 1 Enquire
821 HY532976CB
TUB-MANF TO A/COMPLH
VIN L03723->, 1 PieceWCAC 		- 1 Enquire
830 HY532976BB
TUB-MANF TO AIR COMP
-> VIN L03722, 2 PieceWCAC 		- 1 Enquire
831 HY532976DB
TUB-MANF TO A/COM-RH
VIN L03723->, 1 PieceWCAC 		- 1 Enquire
840 HY53320786AA
SPIGOT
2 Piece WCAC 		- 2 Enquire
850 HY539E936BA
O-RING 62X2.5
2 Piece WCAC 		- 2 Enquire
855 702637
SCREW M6X20 SKT HD 		- 4 Enquire
860 HY53223035AA
RECIRC VALVE TR BCH 		- 2 Enquire
870 HY539K308AB
TUBE-AIR BYP VLV INL
-> VIN L03722, 2 PieceWCAC 		- 1 Enquire
871 HY539K308CB
TUBE-AIR BYP V/INL-L
VIN L03723->, 1 PieceWCAC 		- 1 Enquire
880 HY539K308BB
TUBE-AIR BYP VLV INL
-> VIN L03722, 2 PieceWCAC 		- 1 Enquire
881 HY539K308DB
TUBE-AIR BYP V/INL-R
VIN L03723->, 1 PieceWCAC 		- 1 Enquire
890 HY536K767BB
BRKT FR WCAC 		- 2 Enquire
900 55036988
PANTINA SX OPT PELLE USA 		- 1 Enquire
910 55040768
RH SIDE SEATS 		- 1 Enquire
920 HY536790AA
BUSH 		- 2 Enquire
930 HY535144AA
SPACER 		- 2 Enquire
940 702573
BOLT M8 X 35 		- 2 Enquire
950 702844
BOLT-M8 x 30 HF 8 		- 8 Enquire
960 706423
SCREW-M8 x 25 HF PI 		- 2 Enquire
970 HY536790BA
BUSH (REAR) 		- 2 Enquire
980 55040797
RH SEAT CUSHION 		- 2 Enquire
990 702565
BOLT M6 X 16 		- 2 Enquire
1000 702637
SCREW M6X20 SKT HD 		- 6 Enquire
