Speakers, B&O

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Speakers, B&O

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

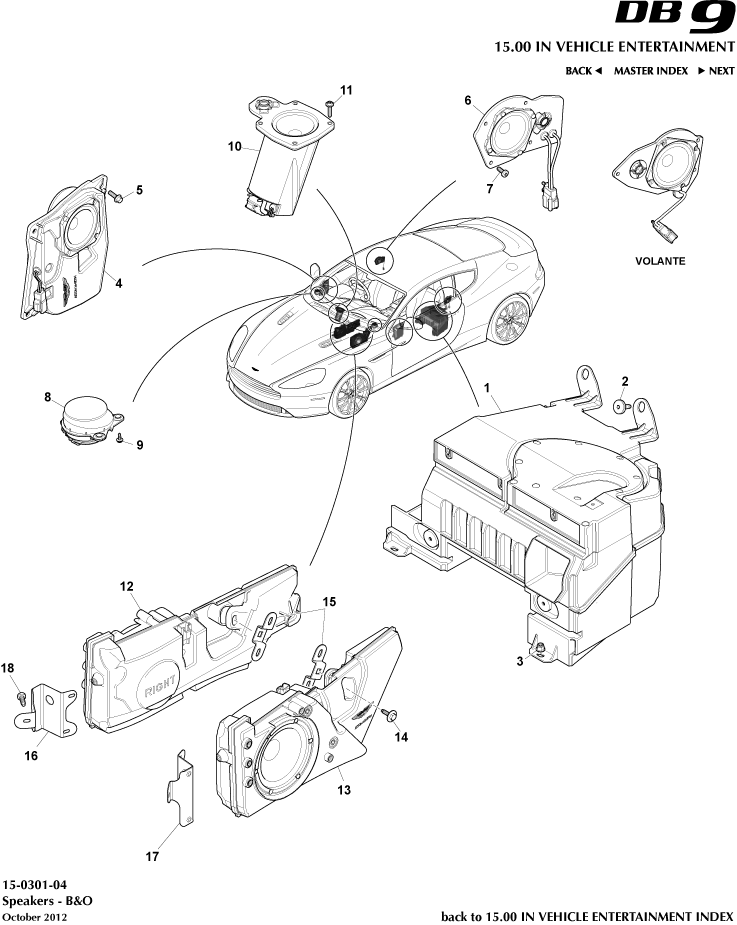

Speakers, B&O of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9D3346684BA
Speaker, Rear, RH Volante
- 		- 1 Enquire
- 9D3346685BA
Speaker, Rear, LH Volante
- 		- 1 Enquire
1 9D3318C956AC
Sub Enclosure
- 		- 1 Enquire
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
- 		- 2 Enquire
3 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE
- 		- 2 Enquire
5 700607
Screw Hex Flange Head M6 x 16mm
4 Per Door 		- 8 Enquire
8 9D3318D801AB
ACOUSTIC LENS TWEETER-BASALT
- 		- 2 Enquire
9 705464
Screw, 4.2 x 16, Washer Head, Self Tapping
- 		- 3 Per Tweeter Enquire
10 9D3370451AA
CNTR SPKR
- 		- 1 Enquire
11 703736
Screw Self Tapping, 4.2 x 19, Washer Head
- 		- 1 Enquire
12 9D336696XAC
Speaker Box, Footwell, RH
- 		- 1 Enquire
13 9D336696YAC
Speaker Box, Footwell, LH
- 		- 1 Enquire
14 703152
SCREW/WSHR M6x20 HEX PILOT CHROME FREE
2 Per Speaker 		- 4 Enquire
15 9D3319080AA
Mounting Bracket, Loudspeaker
- 		- 2 Enquire
16 9D332B100AC
Bracket, Foot Well Speaker Box, RH
- 		- 1 Enquire
17 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH
- 		- 1 Enquire
18 703026
Screw, M5 x 16, Hex Flange Head
- 		- 6 Enquire
