Battery Cables, Coupe

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Battery Cables, Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

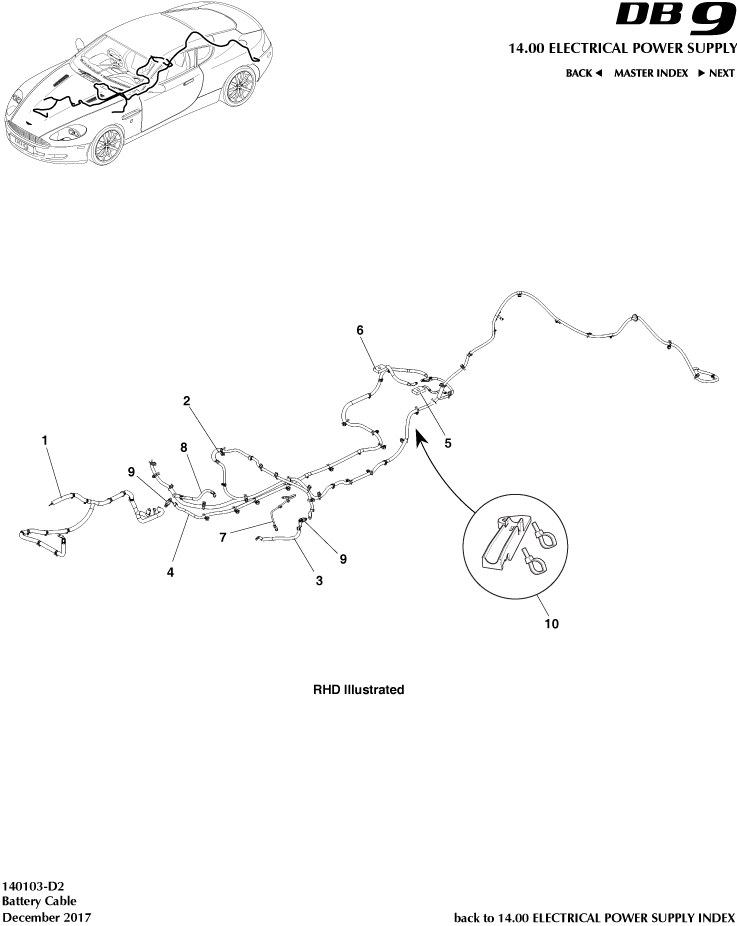

Battery Cables, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3310C310AB
CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART
09MY 		- 1 Enquire
- 4G4314B278AD
CABLE ASSY CLEAN FEED LHD BDS TO B/HEAD 2 TO PJB
- 		- 1 Enquire
- 7G4314B278AC
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD
07MY 		- 1 Enquire
- KY9Y5450AA
MLT LANG FUEL LBL
08MY From (V) A09110 		- 1 Enquire
- 9G4314B278AC
CABLE ASSY BDS TO BULKHEAD STUD CLEAN FEED COUPE LHD
09MY 		- 1 Enquire
- 7G4314B278BC
CABLE ASSY TO BULKHEAD STUD CLEAN FEED COUPE RHD
07MY 		- 1 Enquire
- 920033583
MCPURA WELCOME KIT
08MY From (V) A09110 		- 1 Enquire
- 9G4314B278BC
CBL ASSY TO BULKHEAD STUD CLEAN FEED COUPE RHD
09MY 		- 1 Enquire
- 7G4314305AC
CABLE ASSY BDS TO BULKHEAD STUD DIRTY FEED
07MY 		- 1 Enquire
- 697596
NUT/WASHER ASSY-M6
- 		- 1 Enquire
- 701170
NUT M6 HEX FLG GRD 8
- 		- 2 Enquire
- 701170
NUT M6 HEX FLG GRD 8
- 		- 2 Enquire
- 700607
Screw Hex Flange Head M6 x 16mm
- 		- 1 Enquire
- 701170
NUT M6 HEX FLG GRD 8
- 		- - Enquire
- 701170
NUT M6 HEX FLG GRD 8
- 		- 2 Enquire
- 701170
NUT M6 HEX FLG GRD 8
- 		- 1 Enquire
- 700633
NUT M6 HEX FLG MH8
- 		- 1 Enquire
- 4G4314A280FC
Earth Braid, Antenna Module
- 		- 1 Enquire
- 8D3310A668AA
M8 X 12 BRASS SET SCREW
- 		- 1 Enquire
- 4G4310400AA
M8 COPPER SPRING WASHER
- 		- 1 Enquire
- 703739
Nut, M8, Hex Flange Head
- 		- 1 Enquire
1 4G4310C310AD
CABLE ASSY DIRTYFEED BULKHEAD STUD TO STRTR/ALT/JUMPSTART
- 		- 1 Enquire
2 4G4314B278BD
CABLE ASSY CLEAN FEED RHD BDS TO B/HEAD 2 TO PJB
- 		- 1 Enquire
3 4G4314B278DD
Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box
- 		- 1 Enquire
4 4G4314305AD
CABLE ASSY DIRTY FEED BDS TO BULKHEAD STUD
- 		- 1 Enquire
5 4G4314301AD
Cable Assembly, Battery to GND
- 		- 1 Enquire
6 4G4314300AD
Cable Assembly, Battery to BDS
- 		- 1 Enquire
7 4G4314A280DD
Earth Strap, Bonnet
- 		- 1 Enquire
8 6G4314A280AA
Earth Strap, Engine
- 		- 1 Enquire
9 4G433710114
TERMINAL POST ASSY
- 		- 2 Enquire
10 GD333710114
ROUTING BLOCK KIT
Up to VIN A14982 		- 1 Enquire
