Name: Air Con Lines, R134a Gas
Rating: 5.0 (1 reviews)

Find Your Part

Air Con Lines, R134a Gas of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

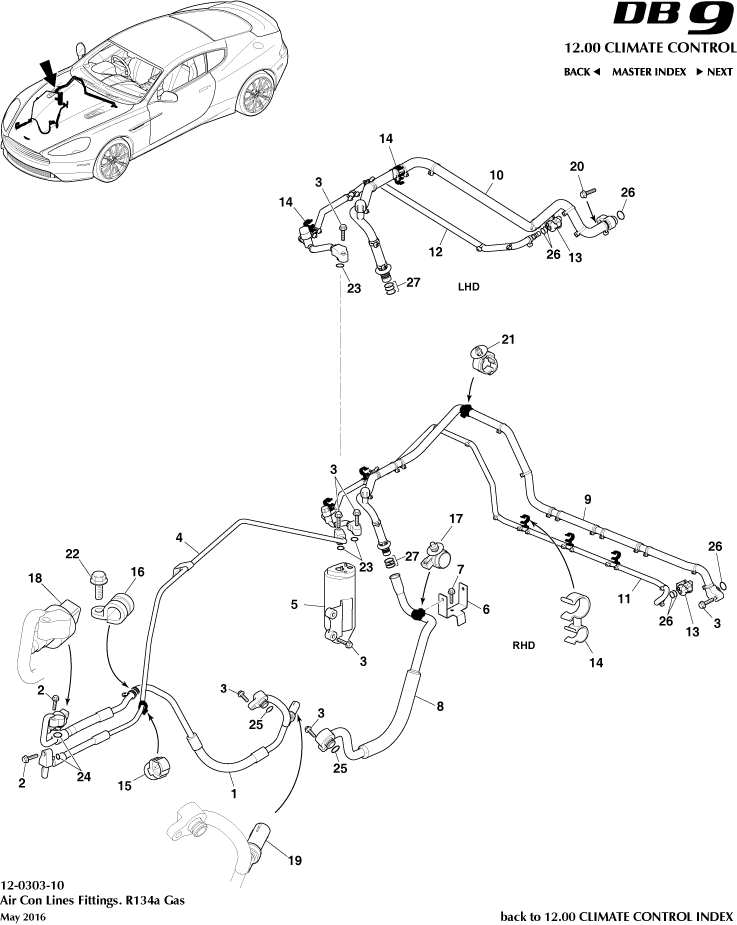

Aston Martin GT DB9 (2004-2017) - Air Con Lines, R134a Gas

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	HD3319972AA	TUBE ASSY A/C COMPR	HD3319972AA TUBE ASSY A/C COMPR From 17MY, With R134 Gas	-	1	Enquire
-	HD3319D719AA	TUBE ASSY AC DEHY IN	HD3319D719AA TUBE ASSY AC DEHY IN From 17MY, With R134 Gas	-	1	Enquire
-	HD3319A705AA	TUB ASY A/C EVP OLET	HD3319A705AA TUB ASY A/C EVP OLET From 17MY, With R134 Gas	-	1	Enquire
-	HG4319A705CA	TUBE ASSY A/C EVAP	HG4319A705CA TUBE ASSY A/C EVAP From 17MY, RHD, With R134 Gas	-	1	Enquire
-	HG4319A705BA	TUB ASY-AIRCON EVAP	HG4319A705BA TUB ASY-AIRCON EVAP From 17MY, LHD, With R134 Gas	-	1	Enquire
-	HG4319835CA	TUBE ASSY A/C DEHY	HG4319835CA TUBE ASSY A/C DEHY From 17MY, RHD, With R134 Gas	-	1	Enquire
-	HG4319835BA	TUBE ASSY A/C DEHY	HG4319835BA TUBE ASSY A/C DEHY From 17MY, LHD, With R134 Gas	-	1	Enquire
1	CD3319972AC	Tube Assy, A/C Compressor to Condenser	CD3319972AC Tube Assy, A/C Compressor to Condenser Up To 17MY	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	2	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free Only 4 Required For LHD	-	5	Enquire
4	CD3319D719AC	Tube Assy, Condenser to Receiver Drier	CD3319D719AC Tube Assy, Condenser to Receiver Drier Up to 17MY	-	1	Enquire
5	4G4319E891AD	Air Conditioning Drier	4G4319E891AD Air Conditioning Drier -	-	1	Enquire
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL RHD Only	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
8	CD3319A705AA	Tube Assy, A/C Evaporator Outlet lower	CD3319A705AA Tube Assy, A/C Evaporator Outlet lower Up To 17MY	-	1	Enquire
9	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper Up To 17MY, RHD	-	1	Enquire
10	AG4319A705BA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705BA Tube Assy, A/C Evaporator Outlet, Upper Up To 17MY, LHD	-	1	Enquire
11	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	AG4319835CA Tube Assy, Receiver Drier to Evaporator Up To 17MY, RHD	-	1	Enquire
12	AG4319835BA	Tube Assy, Receiver Drier to Evaporator	AG4319835BA Tube Assy, Receiver Drier to Evaporator Up To 17MY, LHD	-	1	Enquire
13	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
14	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel Only 2 Required For LHD	-	5	Enquire
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	1	Enquire
16	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
17	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) 100 Per Pack	-	1	Enquire
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
19	6F9319D594AA	SW ASY-A/C PRES CTOF	6F9319D594AA SW ASY-A/C PRES CTOF -	-	1	Enquire
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head LHD Only	-	1	Enquire
21	702291	Clip, 11-18 x 6.5 x 7	702291 Clip, 11-18 x 6.5 x 7 RHD Only	-	1	Enquire
22	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	1	Enquire
23	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) -	-	1	Enquire
24	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) -	-	1	Enquire
25	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2) -	-	1	Enquire
26	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3 -	-	1	Enquire
27	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2 -	-	1	Enquire
