Exhaust System of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Exhaust System

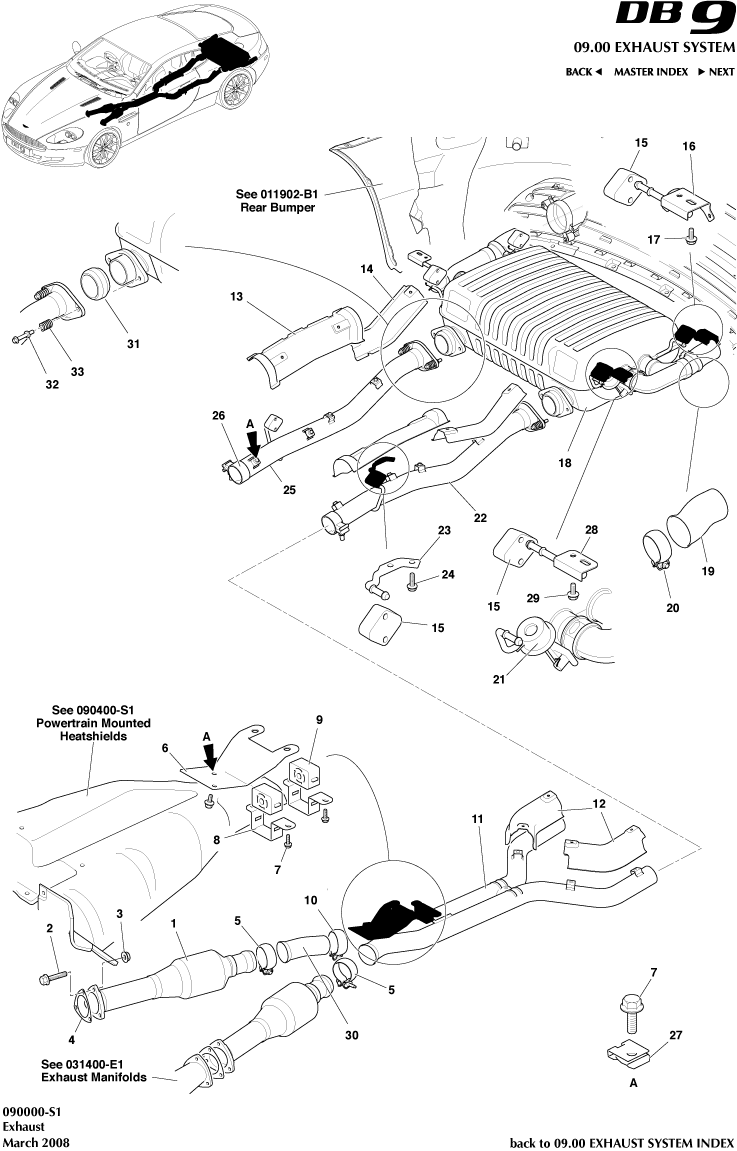

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly 09MY	-	2	Enquire
-	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD 08MY From (V) A09110	-	4	Enquire
-	4G435N201GD	Mounting Bracket, Muffler, Rear RH	4G435N201GD Mounting Bracket, Muffler, Rear RH -	-	1	Enquire
-	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	-	8	Enquire
-	8D335230BF	REAR MUFFLER & BYPASS VALVE ASSY	8D335230BF REAR MUFFLER & BYPASS VALVE ASSY Sport Pack	-	1	Enquire
-	4G435N201BC	INTERMEDIATE MOUNTING BRACKET LH MANUAL	4G435N201BC INTERMEDIATE MOUNTING BRACKET LH MANUAL Manual	-	1	Enquire
-	4G435N201EC	Bracket, Exhaust Pipe Mounting, Intermediate RH	4G435N201EC Bracket, Exhaust Pipe Mounting, Intermediate RH Auto	-	1	Enquire
-	4G435N201CC	INTERMEDIATE MOUNTING BRACKET RH MANUAL	4G435N201CC INTERMEDIATE MOUNTING BRACKET RH MANUAL Manual	-	1	Enquire
-	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	-	4	Enquire
-	4G435N201AC	Mounting Bracket, Muffler, Front RH	4G435N201AC Mounting Bracket, Muffler, Front RH -	-	1	Enquire
-	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head 08MY From (V) A09110	-	4	Enquire
1	4G435E211AE	CATALYST & PIPE ASSY - UNDERFLOOR	4G435E211AE CATALYST & PIPE ASSY - UNDERFLOOR -	-	2	Enquire
2	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL -	-	6	Enquire
3	4G4302738AA	M8 NUT	4G4302738AA M8 NUT -	-	6	Enquire
4	4G435E281AAPK	Gasket, Exhaust Manifold to Under Floor Catalytic Converter	4G435E281AAPK Gasket, Exhaust Manifold to Under Floor Catalytic Converter -	-	2	Enquire
5	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe -	-	2	Enquire
6	4G433962CD	HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	4G433962CD HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET -	-	1	Enquire
7	700211	SCREW M6x14 HEX FLG8	700211 SCREW M6x14 HEX FLG8 07MY	-	4	Enquire
8	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator -	-	2	Enquire
9	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount -	-	2	Enquire
10	4G435221BA	CLAMP	4G435221BA CLAMP -	-	2	Enquire
11	4G435220ED	INTER PIPE - EXH CTR	4G435220ED INTER PIPE - EXH CTR -	-	1	Enquire
12	4G435G221AA	SHL ASY EXH SYS RR F	4G435G221AA SHL ASY EXH SYS RR F -	-	1	Enquire
13	4G435G221BB	SHL ASY EXH SYS RR	4G435G221BB SHL ASY EXH SYS RR -	-	2	Enquire
14	4G435G221CB	SHL ASY EXH SYS RR R	4G435G221CB SHL ASY EXH SYS RR R -	-	2	Enquire
15	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger -	-	6	Enquire
16	4G435N201HD	Mounting Bracket, Muffler, Rear LH	4G435N201HD Mounting Bracket, Muffler, Rear LH -	-	1	Enquire
17	700123	SCREW M8x20 HEX FLG	700123 SCREW M8x20 HEX FLG 07MY	-	8	Enquire
18	4G435230FC	RR MUFLR & BYPS VVE	4G435230FC RR MUFLR & BYPS VVE -	-	1	Enquire
19	4G435220CA	INTERMEDIATE PIPE - EXHAUST	4G435220CA INTERMEDIATE PIPE - EXHAUST -	-	2	Enquire
20	4G435221BA	CLAMP	4G435221BA CLAMP -	-	2	Enquire
21	4G439E485AA	EXH BYPASS VALV	4G439E485AA EXH BYPASS VALV -	-	2	Enquire
22	4G435220BD	INTER PIPE - EXH LH	4G435220BD INTER PIPE - EXH LH -	-	1	Enquire
23	4G435N201DC	Bracket, Exhaust Pipe Mounting, Intermediate LH	4G435N201DC Bracket, Exhaust Pipe Mounting, Intermediate LH Auto	-	1	Enquire
24	700123	SCREW M8x20 HEX FLG	700123 SCREW M8x20 HEX FLG 07MY	-	4	Enquire
25	4G435220AD	INT PIPE - EXHAUST	4G435220AD INT PIPE - EXHAUST -	-	1	Enquire
26	4G435221BA	CLAMP	4G435221BA CLAMP -	-	2	Enquire
27	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	24	Enquire
28	4G435N201FC	Mounting Bracket, Muffler, Front LH	4G435N201FC Mounting Bracket, Muffler, Front LH -	-	1	Enquire
29	700123	SCREW M8x20 HEX FLG	700123 SCREW M8x20 HEX FLG 07MY	-	4	Enquire
30	4G435220FA	PIPE-EXH	4G435220FA PIPE-EXH -	-	1	Enquire
31	4G4317213AA	SEALING RING	4G4317213AA SEALING RING -	-	2	Enquire
32	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head -	-	4	Enquire
33	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange -	-	4	Enquire
