Clutch System, RHD of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Clutch System, RHD

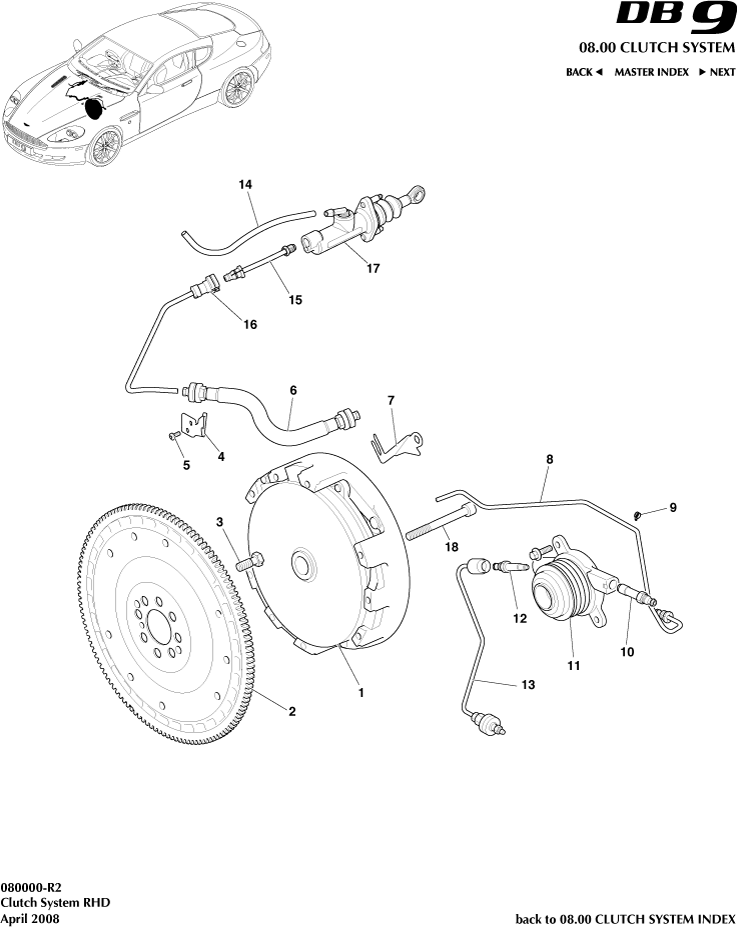

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G431111200	Clutch Kit	4G431111200 Clutch Kit 09 MY from VIN A10678 or B10563. Includes items 1,2,3,11 and 18 (Calibration required when changing to Valeo clutch)	-	1	Enquire
-	8D337540AB	CLUTCH - TWIN PLATE	8D337540AB CLUTCH - TWIN PLATE 08MY. NSS. Replace with Clutch Kit 4G43-11-11200	-	1	Enquire
-	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM 09MY From VIN A10678 or B10563	-	1	Enquire
-	9G436375BA	FLYWHEEL ASSEMBLY SINGLE MASS	9G436375BA FLYWHEEL ASSEMBLY SINGLE MASS 08MY. NSS. Replace with Clutch Kit 4G43-11-11200	-	1	Enquire
-	8D336375CA	Flywheel Assembly Single Mass	8D336375CA Flywheel Assembly Single Mass 09MY From VIN A10678 or B10563	-	1	Enquire
-	700891	SCREW-M5 x 8 HEX FLG	700891 SCREW-M5 x 8 HEX FLG 07MY	-	1	Enquire
-	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE 08MY From VIN A09110	-	1	Enquire
-	AD237A564AA	Slave Cylinder, Clutch	AD237A564AA Slave Cylinder, Clutch Valeo Clutch. 09MY From VIN A10678 or B10563	-	1	Enquire
-	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG -	-	2	Enquire
-	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head 09MY From VIN A10678 or B10563	-	9	Enquire

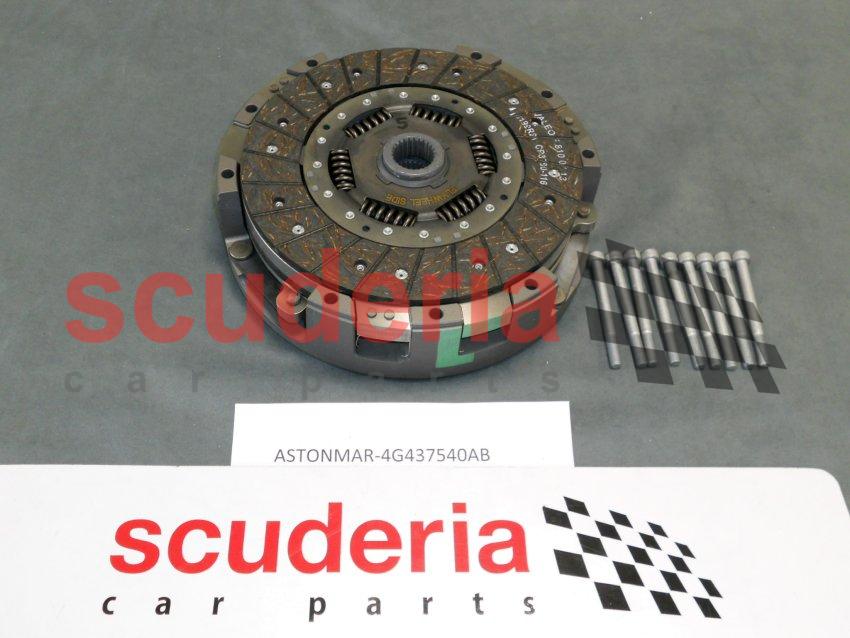

1	4G437540AB	Clutch - Twin Plate	4G437540AB Clutch - Twin Plate NSS. Replace with Clutch Kit 4G43-11-11200	-	1	Enquire
2	4G436375AC	FLYWHEEL - SINGLE MASS	4G436375AC FLYWHEEL - SINGLE MASS NSS. Replace with Clutch Kit 4G43-11-11200	-	1	Enquire
3	697786PK	Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5	697786PK Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5 ALWAYS REPLACE. DO NOT RE-USE. Pack of 5	-	8	Enquire
4	4G43R7N630BB	BRACKET CLUTCH LINE RHD	4G43R7N630BB BRACKET CLUTCH LINE RHD -	-	1	Enquire
5	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK -	-	2	Enquire
6	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD Includes items 8 and 16	-	1	Enquire
7	4G437T503BA	HOSE SUPPORT BRACKET RHD	4G437T503BA HOSE SUPPORT BRACKET RHD -	-	1	Enquire
8	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 6	-	1	Enquire
9	699632	'P' CLIP	699632 'P' CLIP -	-	1	Enquire
10	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8 -	-	1	Enquire

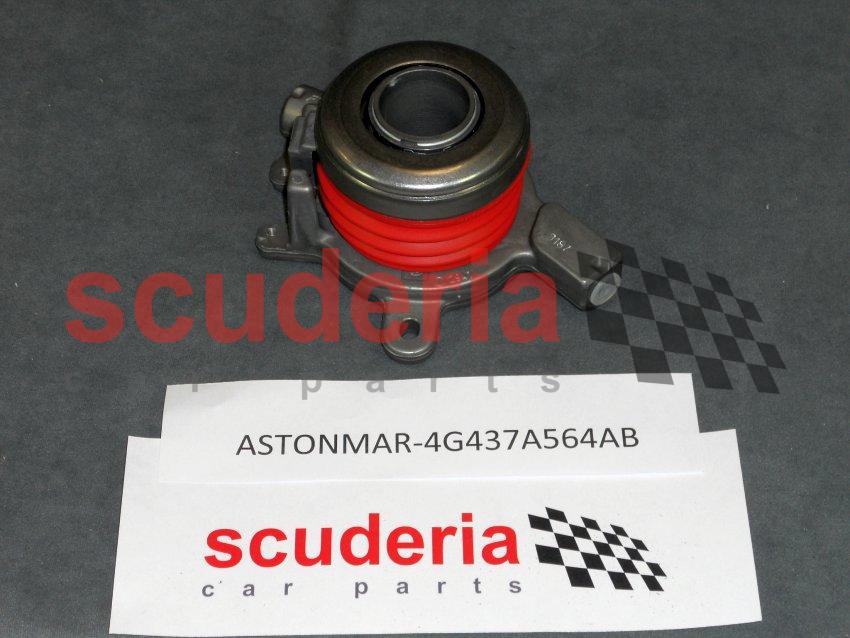

11	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder AP Clutch	-	1	Enquire
12	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0 -	-	1	Enquire
13	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED -	-	1	Enquire
14	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl -	-	1	Enquire
15	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD -	-	1	Enquire
16	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 6	-	1	Enquire
17	4G437578AA	Kit, Clutch Master Cylinder	4G437578AA Kit, Clutch Master Cylinder -	-	1	Enquire
18	8D33CD60BA	BOLT CLUTCH TO FLYWHEEL	8D33CD60BA BOLT CLUTCH TO FLYWHEEL -	-	8	Enquire
