Rear Brake System of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

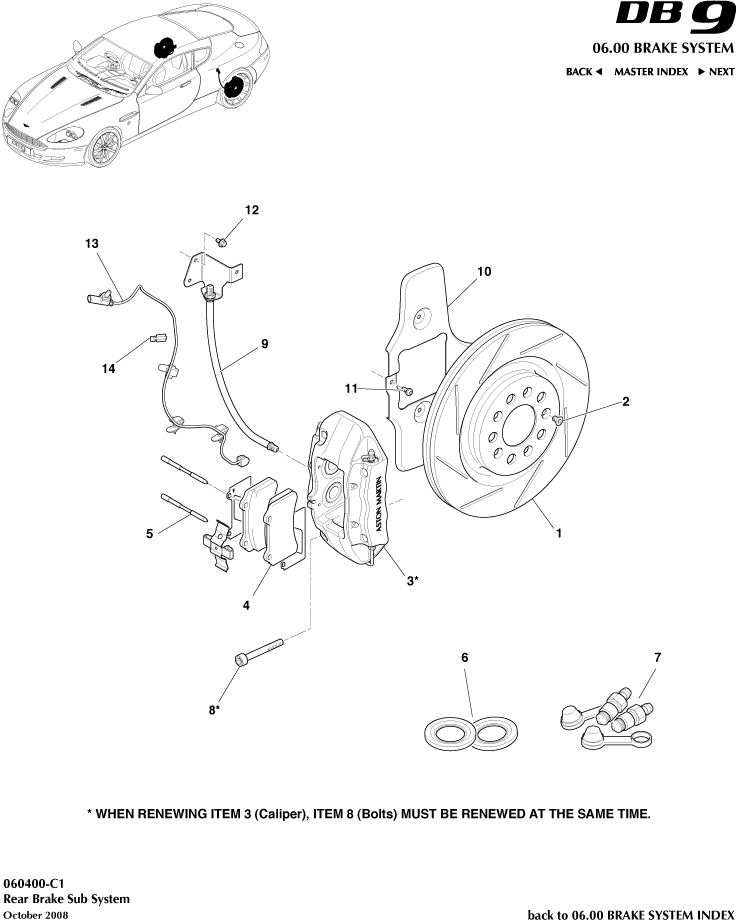

Aston Martin GT DB9 (2004-2017) - Rear Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G432C464AA	CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464AA CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS -	-	1	Enquire
-	7G432C465CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465CA CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS -	-	1	Enquire
-	7G432C464CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464CA CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS -	-	1	Enquire
-	7G432C465DA	CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465DA CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS -	-	1	Enquire
-	7G432C464DA	CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464DA CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS -	-	1	Enquire
-	7G432C465EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465EA CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS -	-	1	Enquire
-	7G432C464EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464EA CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS -	-	2	Enquire
-	4G432810942	REAR BRAKE PADS & SHIM SET ARRIVING SOON	4G432810942 REAR BRAKE PADS & SHIM SET - ARRIVING SOON	-	1	Enquire
-	7G432C464FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS	7G432C464FA CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS From 12MY	-	1	Enquire
-	7G432C465FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	7G432C465FA CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS From 12MY	-	1	Enquire
-	4G432810942	REAR BRAKE PADS & SHIM SET ARRIVING SOON	4G432810942 REAR BRAKE PADS & SHIM SET - ARRIVING SOON	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per Caliper	-	1	Enquire
-	8G432282AA	HOSE ASSY REAR WHEEL BRAKE LH	8G432282AA HOSE ASSY REAR WHEEL BRAKE LH From 08MY	-	1	Enquire
-	4G432282BA	HOSE ASY RR WHL BRK	4G432282BA HOSE ASY RR WHL BRK Up to 08MY	-	1	Enquire
-	8G432282BA	HOSE ASSY REAR WHEEL BRAKE RH	8G432282BA HOSE ASSY REAR WHEEL BRAKE RH From 08MY	-	1	Enquire
-	4G432C028AA	SHLD-RR WHL DSC BRK	4G432C028AA SHLD-RR WHL DSC BRK -	-	1	Enquire

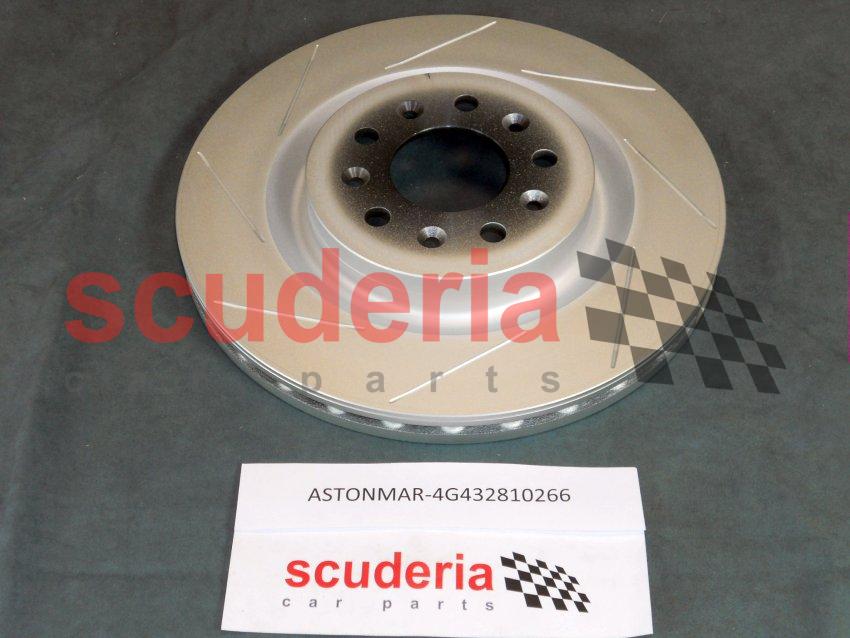

1	4G432810266	Rear Brake Disc ARRIVING SOON	4G432810266 Rear Brake Disc Sold in Singles. ALWAYS Fit in Pairs. ARRIVING SOON	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3	7G432C465AA	CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465AA CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS -	-	1	Enquire

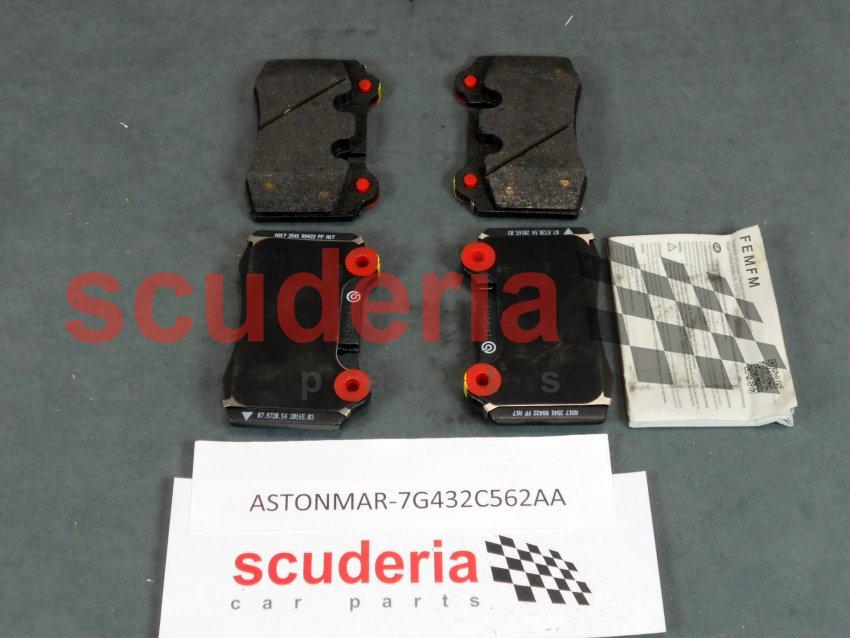

4	7G432C562AA	Rear Brake Pad Kit ARRIVING SOON	7G432C562AA Rear Brake Pad Kit Per axle set ARRIVING SOON	-	1	Enquire

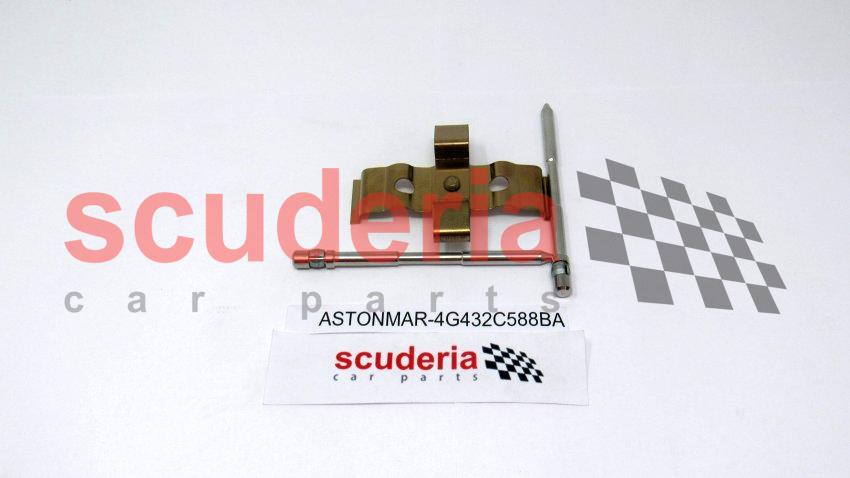

5	4G432C588BA	Pins and Spring Kit Rear Caliper ARRIVING SOON	4G432C588BA Pins and Spring Kit Rear Caliper Per Caliper ARRIVING SOON	-	1	Enquire
6	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper Per Caliper	-	1	Enquire
7	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per Caliper	-	1	Enquire

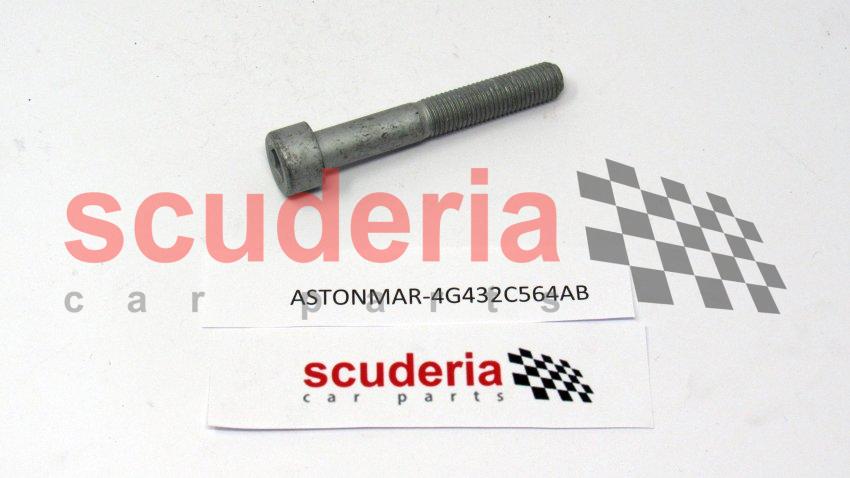

8	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL -N.B. Always fit new bolts,do not reuse ARRIVING SOON	-	4	Enquire
9	4G432282AA	HOS ASY-RR WHL BRK	4G432282AA HOS ASY-RR WHL BRK Up to 08MY	-	1	Enquire
10	4G432C029AA	SHLD-RR WHL DSC BRK	4G432C029AA SHLD-RR WHL DSC BRK -	-	1	Enquire
11	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
12	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire

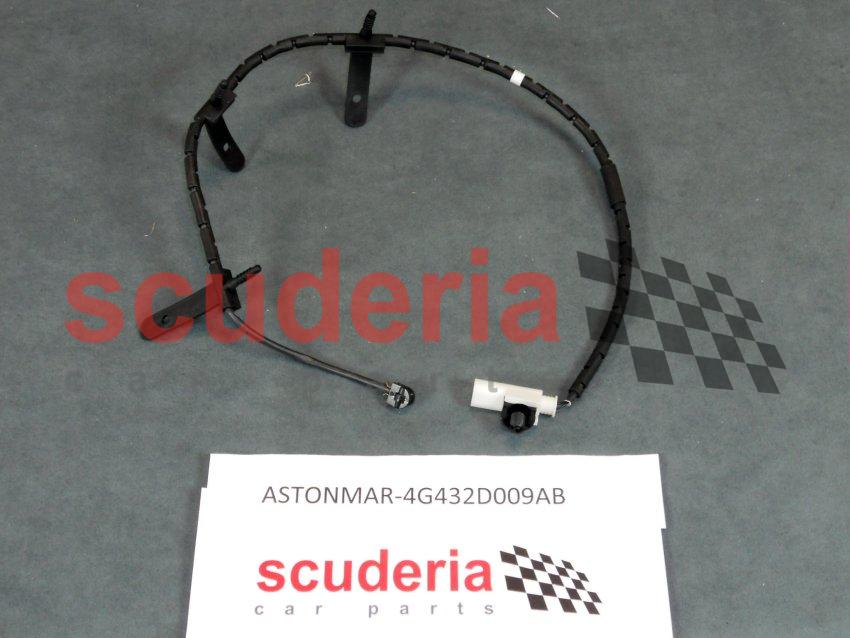

13	4G432D009AB	Pad Wear Lead Rear	4G432D009AB Pad Wear Lead Rear -	-	2	Enquire
14	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Wear leadto hose	-	2	Enquire
