Power Brake Assembly of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

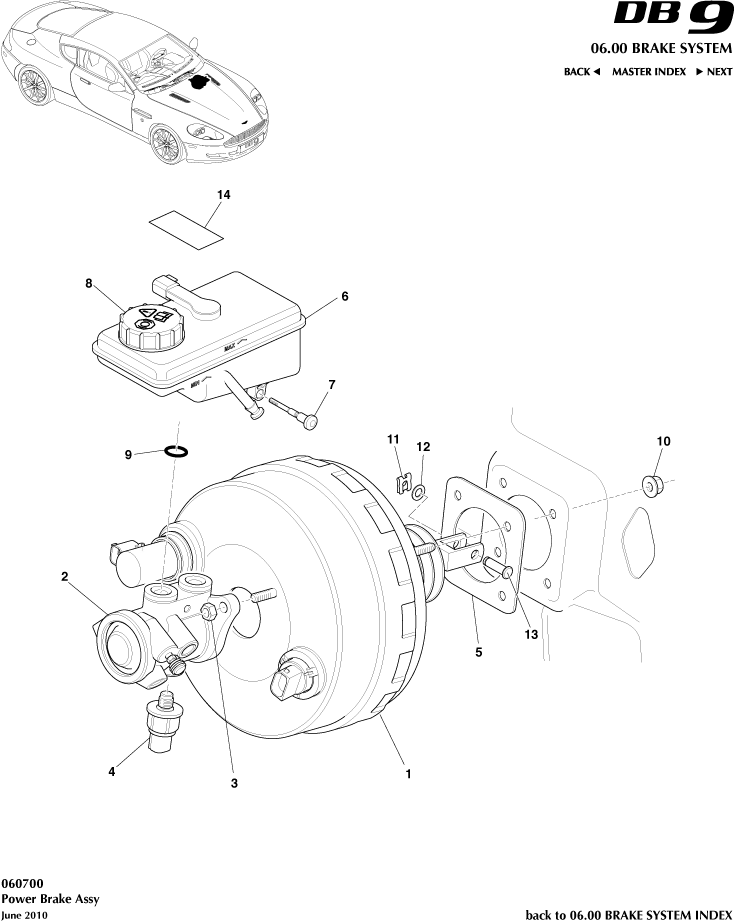

Aston Martin GT DB9 (2004-2017) - Power Brake Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	673015321	MOSTRINA VERNICIATA BRONZO S	673015321 MOSTRINA VERNICIATA BRONZO S -	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass See 020600-C1 Heat shields	-	1	Enquire
-	700781	RESPONSE SUPER DOT 4	700781 RESPONSE SUPER DOT 4 -	-	A/R	Enquire
1	4G432005BB	Booster Assembly Kit	4G432005BB Booster Assembly Kit -	-	1	Enquire
2	4G433310211	Brake Master Cylinder Assy	4G433310211 Brake Master Cylinder Assy -	-	1	Enquire
3	703978	Nut, lock, M8	703978 Nut, lock, M8 Mstr Cyl to Booster	-	2	Enquire
4	4G433310214	Brake Pressure Transducer	4G433310214 Brake Pressure Transducer -	-	1	Enquire
5	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
6	4G433310212	Kit, Brake Reservoir and Plug	4G433310212 Kit, Brake Reservoir and Plug -	-	1	Enquire
7	4G433310216	Screw, Reservoir Retainer	4G433310216 Screw, Reservoir Retainer -	-	2	Enquire
8	4G433310213	Brake Reservoir Cap	4G433310213 Brake Reservoir Cap -	-	4	Enquire
9	4G433310215	Seal, Reservoir to Master Cylinder	4G433310215 Seal, Reservoir to Master Cylinder -	-	2	Enquire
10	701342	NUT M8 HEX P/T PLAS8	701342 NUT M8 HEX P/T PLAS8 -	-	4	Enquire
11	6G3327328AA	Clip, Safety, Nom Shaft, 5/16	6G3327328AA Clip, Safety, Nom Shaft, 5/16 -	-	1	Enquire
12	703273	WASHER WAVE SPRING M8	703273 WASHER WAVE SPRING M8 -	-	1	Enquire
13	2984879	Pin, Joint	2984879 Pin, Joint -	-	1	Enquire
14	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass See 000103 Under bonnet Labels	-	1	Enquire
15	9G433311077	PEDAL TRAVEL SENSOR KIT	9G433311077 PEDAL TRAVEL SENSOR KIT -	-	1	Enquire
