Parking Brake of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Parking Brake

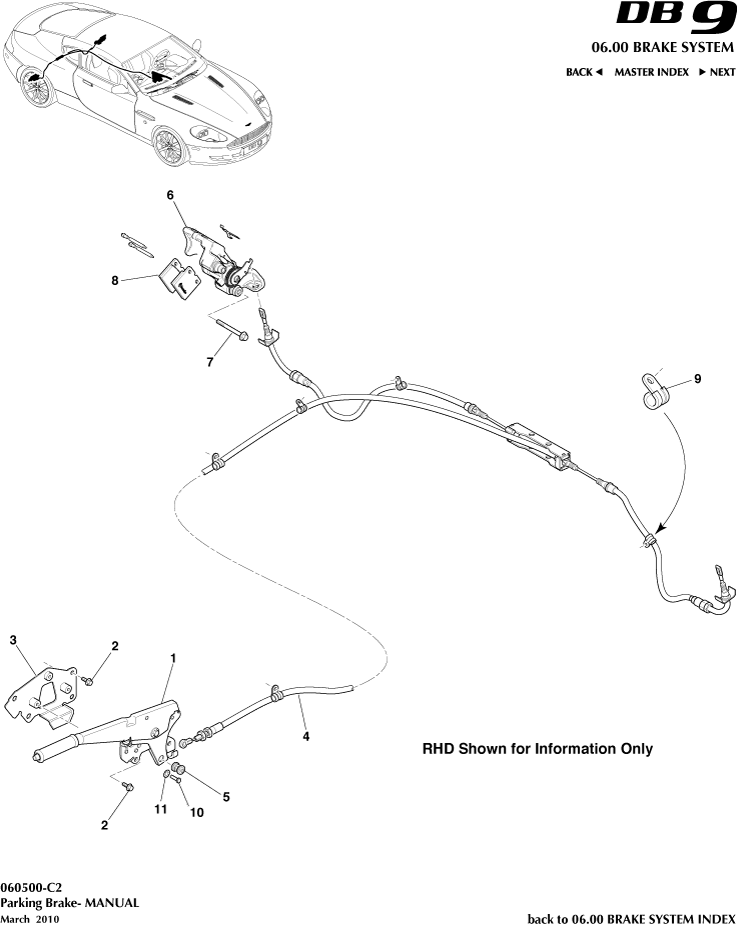

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G438492BB	ASSY HBRKE HLVR RHD	4G438492BB ASSY HBRKE HLVR RHD -	-	1	Enquire
-	4G432A686BB	Bracket Assembly, Handbrake Lever, RHD	4G432A686BB Bracket Assembly, Handbrake Lever, RHD -	-	1	Enquire
-	670151798	LH UP REAR PILLAR COVER GUAR	670151798 LH UP REAR PILLAR COVER GUAR -	-	1	Enquire
-	4G432B296BA	PINS - PAD RETAINING ARRIVING SOON	4G432B296BA PINS - PAD RETAINING 1 per caliper ARRIVING SOON	-	2	Enquire
-	4G432W065AA	BOOT - SLIDING PIN	4G432W065AA BOOT - SLIDING PIN -	-	2	Enquire
-	4G43224259BA	SPRING - ANTI RATTLE HANDBRAKE CAL RH ARRIVING SOON	4G43224259BA SPRING - ANTI RATTLE HANDBRAKE CAL RH - ARRIVING SOON	-	2	Enquire
-	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	5	Enquire
-	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	3	Enquire
-	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm -	-	1	Enquire
-	4G43228014AA	PLUG BLANKING (M8)	4G43228014AA PLUG BLANKING (M8) H/brake brkt rivnut blanking	-	4	Enquire
-	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) H/brake P clip rivnut blanking	-	1	Enquire
-	3784688	Switch, Handbrake	3784688 Switch, Handbrake -	-	1	Enquire
1	4G438492AC	Handbrake Lever Assembly, LHD	4G438492AC Handbrake Lever Assembly, LHD -	-	1	Enquire
2	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	6	Enquire
3	4G432A686AB	Bracket Assembly, Handbrake Lever, LHD	4G432A686AB Bracket Assembly, Handbrake Lever, LHD -	-	1	Enquire
4	4G432853AD	CABLE & CONDUIT ASSEMBLY, PARKING BRAKE ARRIVING SOON	4G432853AD CABLE & CONDUIT ASSEMBLY, PARKING BRAKE - ARRIVING SOON	-	1	Enquire
5	6G33439136AA	Trunnion, Handbrake Cable	6G33439136AA Trunnion, Handbrake Cable -	-	2	Enquire
6	670151801	RH UP REAR PILLAR COVER GUAR	670151801 RH UP REAR PILLAR COVER GUAR -	-	1	Enquire
7	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	4G432C564CA Bolt M10x87 Hex flange, secures EPB Caliper to Hub	-	4	Enquire
8	4G432C562BA	Pads - Handbreak Caliper Axle Set	4G432C562BA Pads - Handbreak Caliper Axle Set (per axle)	-	1	Enquire
9	694891	P-CLIP	694891 P-CLIP -	-	5	Enquire
10	7G432K605AA	Pin, Pivot Cable, Handbrake	7G432K605AA Pin, Pivot Cable, Handbrake -	-	1	Enquire
11	6G33100063AAPK	FIXER-PUSH ON 6mm SHAFT PACK OF 10	6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10 -	-	1	Enquire
