Front Brake System of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Front Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

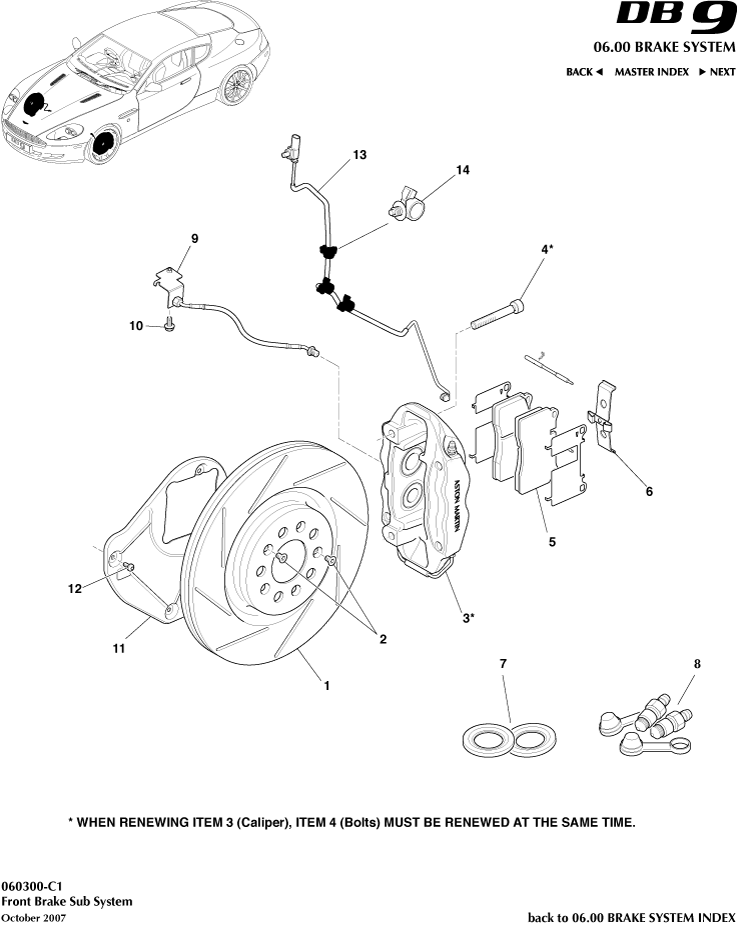

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G432C462AA	CALIPER ASSY GREY - FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462AA CALIPER ASSY GREY - FRONT WHEEL BRAKE RH NOT INC PADS -	-	1	Enquire
-	4G432C463CA	CALIPER ASSY BLACK - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463CA CALIPER ASSY BLACK - FRONT WHEEL BRAKE LH NOT INC PADS -	-	1	Enquire
-	4G432C462CA	CALIPER ASSY BLACK - FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462CA CALIPER ASSY BLACK - FRONT WHEEL BRAKE RH NOT INC PADS -	-	1	Enquire
-	4G432C463DA	CALIPER ASSY RED - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463DA CALIPER ASSY RED - FRONT WHEEL BRAKE LH NOT INC PADS -	-	1	Enquire
-	4G432C462DA	CALIPER ASSY RED - FRONT WHEEL BRAKE RH NOT INCL PADS	4G432C462DA CALIPER ASSY RED - FRONT WHEEL BRAKE RH NOT INCL PADS -	-	1	Enquire
-	4G432C463EA	CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS	4G432C463EA CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS -	-	1	Enquire
-	4G432C462EA	CALIPER ASSY SILVER - FRONT WHEEL BRAKE RH - NOT INC PADS	4G432C462EA CALIPER ASSY SILVER - FRONT WHEEL BRAKE RH - NOT INC PADS -	-	1	Enquire
-	4G432C463FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS 12MY	-	1	Enquire
-	4G432C462FA	CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS	4G432C462FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS 12MY	-	1	Enquire
-	7G432D007AA	Front Brake Pad Kit ARRIVING SOON	7G432D007AA Front Brake Pad Kit Axle Set ARRIVING SOON	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw 1 Per Caliper	-	2	Enquire
-	4G432078BD	Hose, Front Wheel Brake RH	4G432078BD Hose, Front Wheel Brake RH -	-	1	Enquire
-	AD432K004AB	SHIELD - FRONT BRAKE DISC RH	AD432K004AB SHIELD - FRONT BRAKE DISC RH -	-	1	Enquire
1	4G432810265	Front Brake Disc	4G432810265 Front Brake Disc Sold in Singles. ALWAYS Fit in Pairs.	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk -	-	4	Enquire
3	4G432C463AA	CALIPER ASSY GREY - FRONT WHEEL BRAKE LH NOT INC PADS	4G432C463AA CALIPER ASSY GREY - FRONT WHEEL BRAKE LH NOT INC PADS -	-	1	Enquire
4	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL -N.B. Always fit new bolts,do not reuse ARRIVING SOON	-	4	Enquire
5	4G432810941	FRONT BRAKE PADS & SHIM SET ARRIVING SOON	4G432810941 FRONT BRAKE PADS & SHIM SET - ARRIVING SOON	-	1	Enquire
6	4G432C588AA	PINS AND SPRING KIT FRONT CALIPER ARRIVING SOON	4G432C588AA PINS AND SPRING KIT FRONT CALIPER 1 Per Caliper ARRIVING SOON	-	2	Enquire
7	4G4332180AA	DUST BOOT KIT FRONT CALIPER	4G4332180AA DUST BOOT KIT FRONT CALIPER 1 Per Caliper	-	2	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw 1 Per Caliper	-	2	Enquire
9	4G432078AD	Hose Assembly, Front Wheel Brake, LH	4G432078AD Hose Assembly, Front Wheel Brake, LH -	-	1	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
11	AD432K005AB	SHIELD FRONT BRAKE DISC LH	AD432K005AB SHIELD FRONT BRAKE DISC LH -	-	1	Enquire
12	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield -	-	8	Enquire
13	4G432L507AB	Pad wear Lead Front	4G432L507AB Pad wear Lead Front -	-	2	Enquire
14	4G436510059	CLIP-FIRTREE 5x6.5x2	4G436510059 CLIP-FIRTREE 5x6.5x2 -	-	6	Enquire
