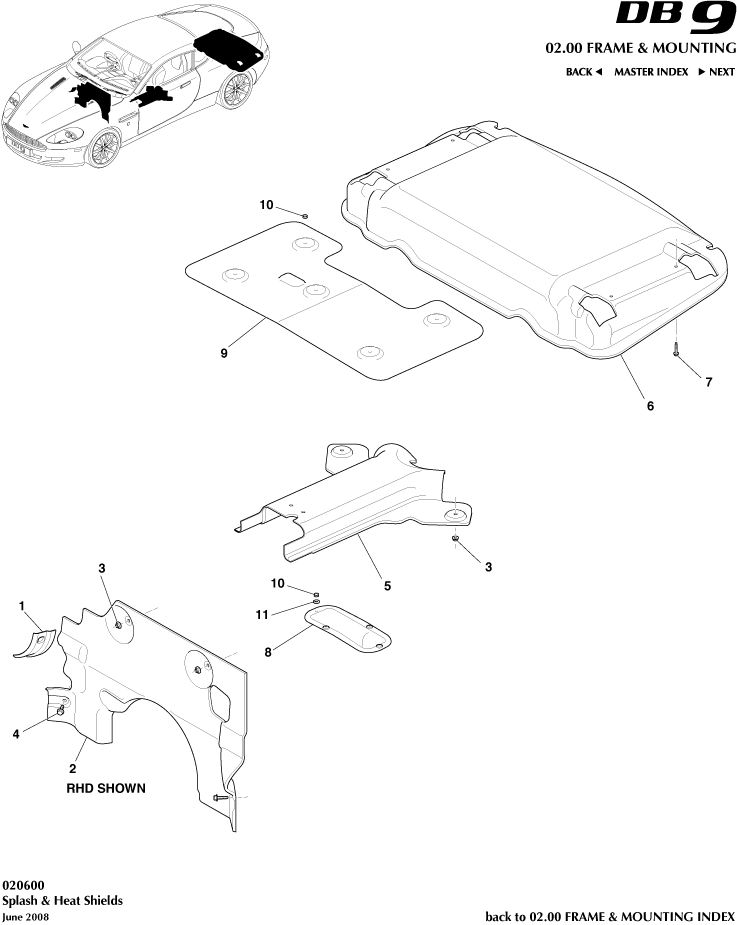

| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| - |
4G43017A16AG HEATSHIELD - FRONT BULKHEAD - LHD - |
- | 1 | Enquire |
| - |
703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE 08MY From (V) A09110 |
- | 2 | Enquire |
| - |
703162 NUT M8 HF 8 CHROME FREE - |
- | 4 | Enquire |
| - |
701196 SCREW M6x16 FLG 07MY |
- | 2 | Enquire |
| - |
703151 Screw M6x16 Washer Hex HD Chrome Free 08MY From (V) A09110 |
- | 2 | Enquire |
| - |
703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110 |
- | 4 | Enquire |
| 1 |
4G432B485AC HEATSHIELD - BRAKE BOOSTER - |
- | 1 | Enquire |
| 2 |
4G43017A16BG HEATSHIELD - FRONT BULKHEAD - RHD - |
- | 1 | Enquire |
| 3 |
703612 Nut & Washer, M6, HVAC to XCB - |
- | 2 | Enquire |
| 4 |
701189 SCREW M6x16 HEX FLG 07MY |
- | 2 | Enquire |
| 5 |
4G434A380AE HEATSHIELD - TUNNEL - |
- | 1 | Enquire |
| 6 |
8D335290AA SHLD MFLR HT - |
- | 1 | Enquire |
| 7 |
700250 BOLT M6x16 07MY |
- | 4 | Enquire |
| 8 |
4G439B184AB Heat Shield, Fuel Tank, Auxiliary - |
- | 1 | Enquire |
| 9 |
4G439A032AF HEATSHIELD - FUEL TANK - |
- | 1 | Enquire |
| 10 |
702811 Rivet, Blind, 6.5 - |
- | 8 | Enquire |
| 11 |
697286 Washer M6 Large OD - |
- | 4 | Enquire |
